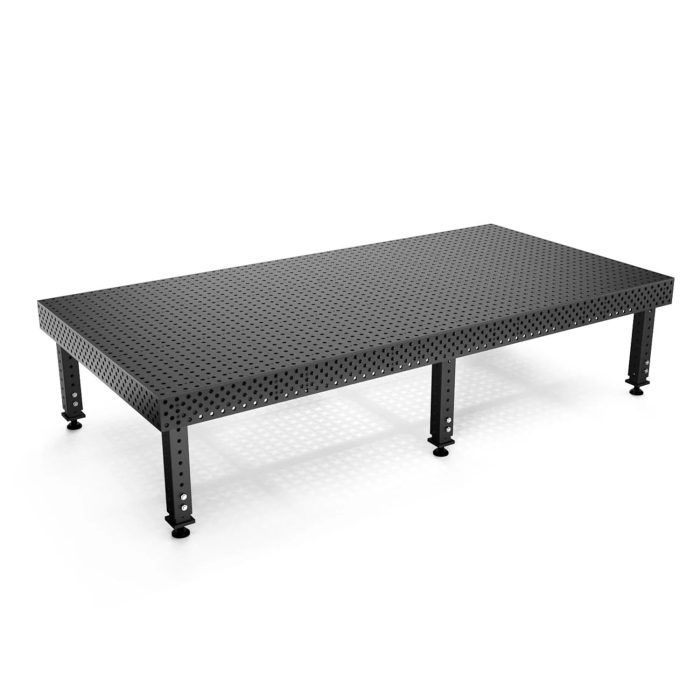

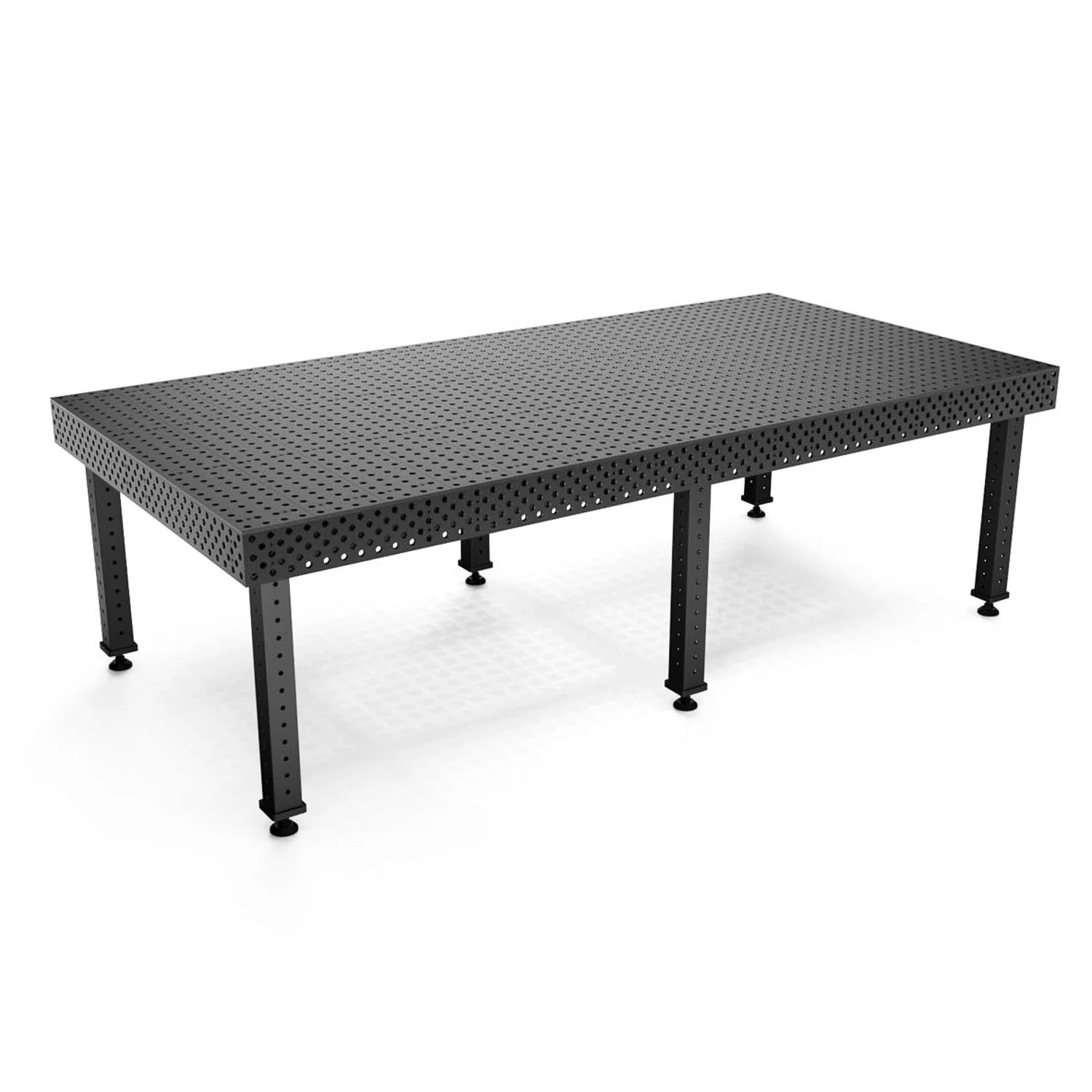

BuildPro Alpha 5 8 Welding Fixture Table
10 x 5 Nitrided – 5 8 Bore Diameter Fixturing Holes

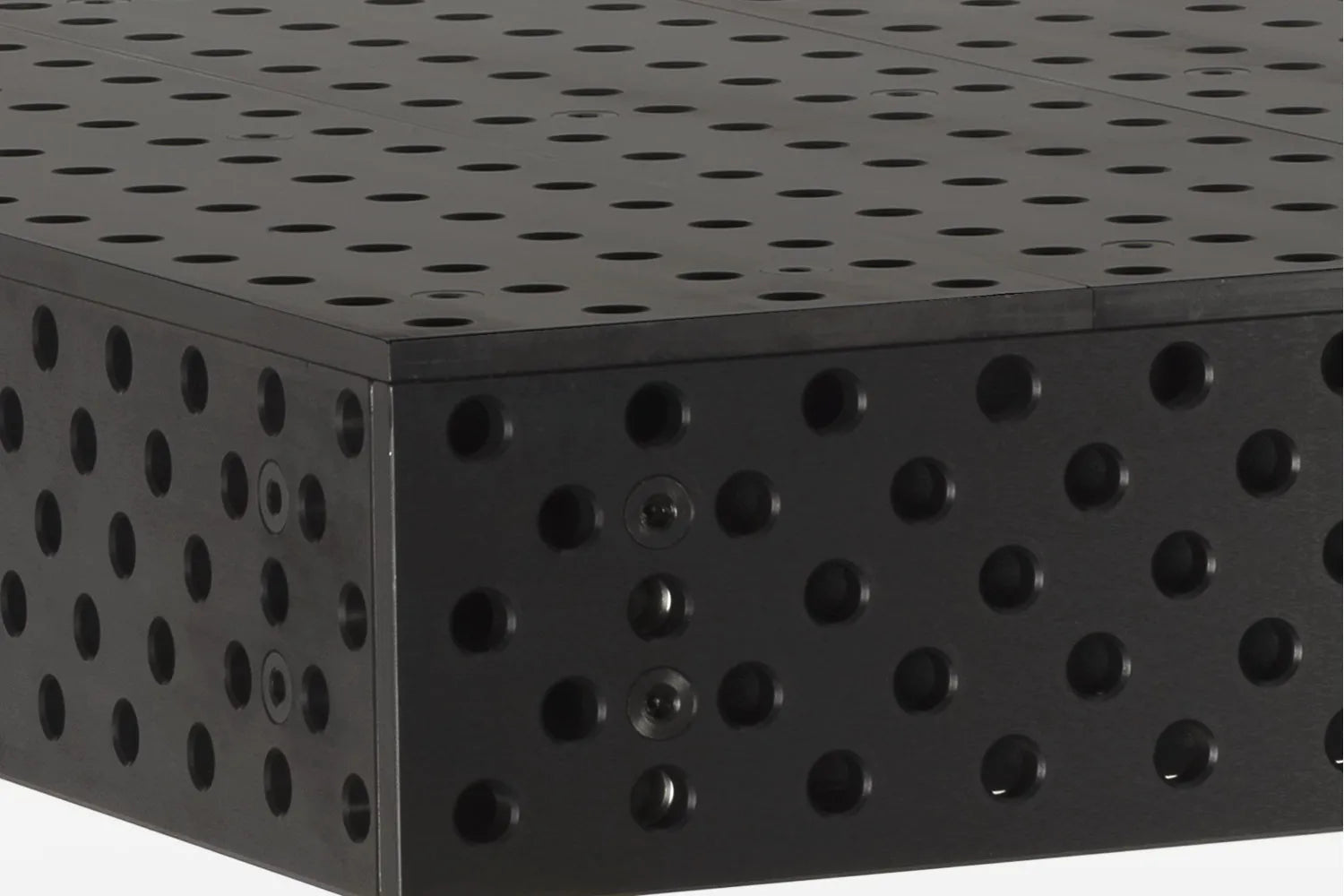

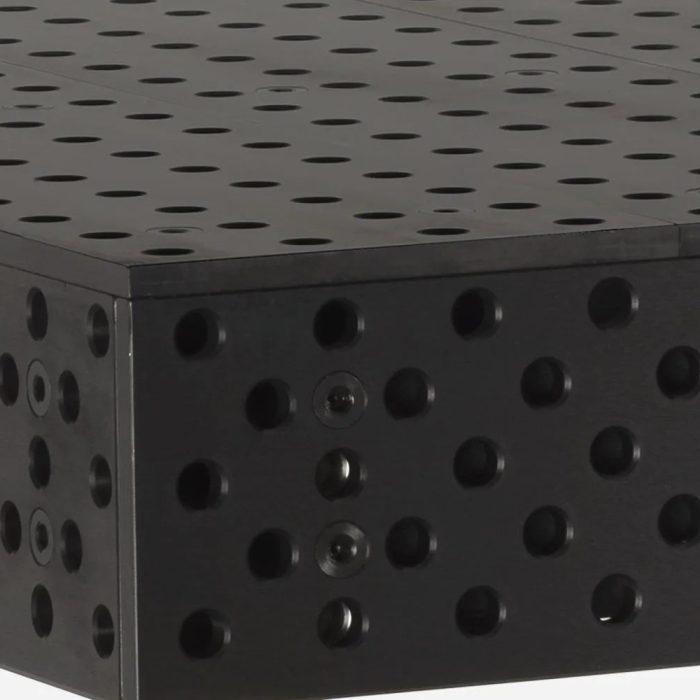

The new heavy-duty table line from BuildPro; it features 5 sides fitted with 5 8″ diameter boreholes for more versatility and expandability than before. Maintaining industry-leading requirements for flatness, squareness, and dimensional accuracy.
Specifications

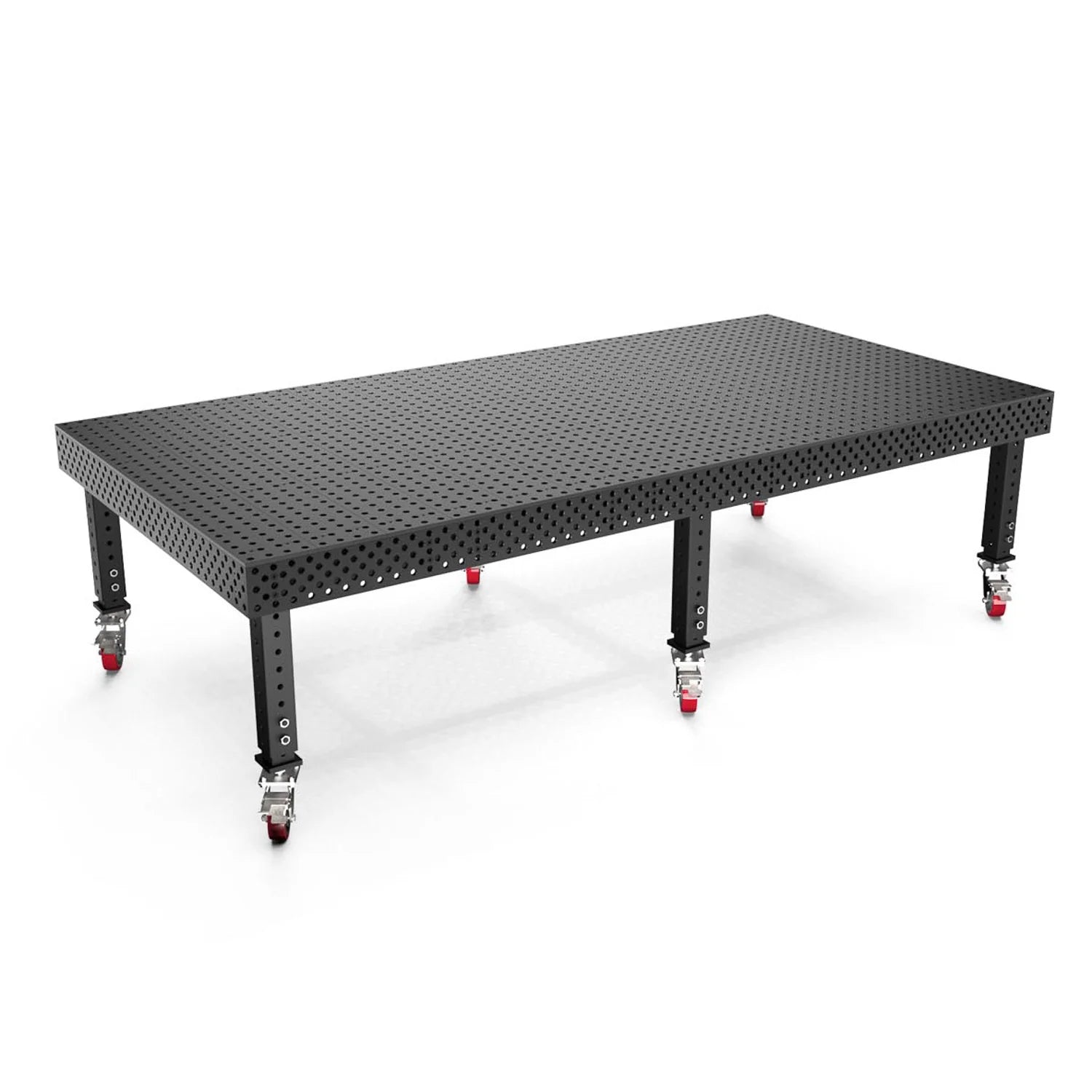

- Capacity: 7,000 lbs (2,000 lbs with casters)
-
- Size: 96 x 48 inches
-
- Flatness: + – .005 inches per 24 x 24 inches
-
- Finish: Nitrided
-

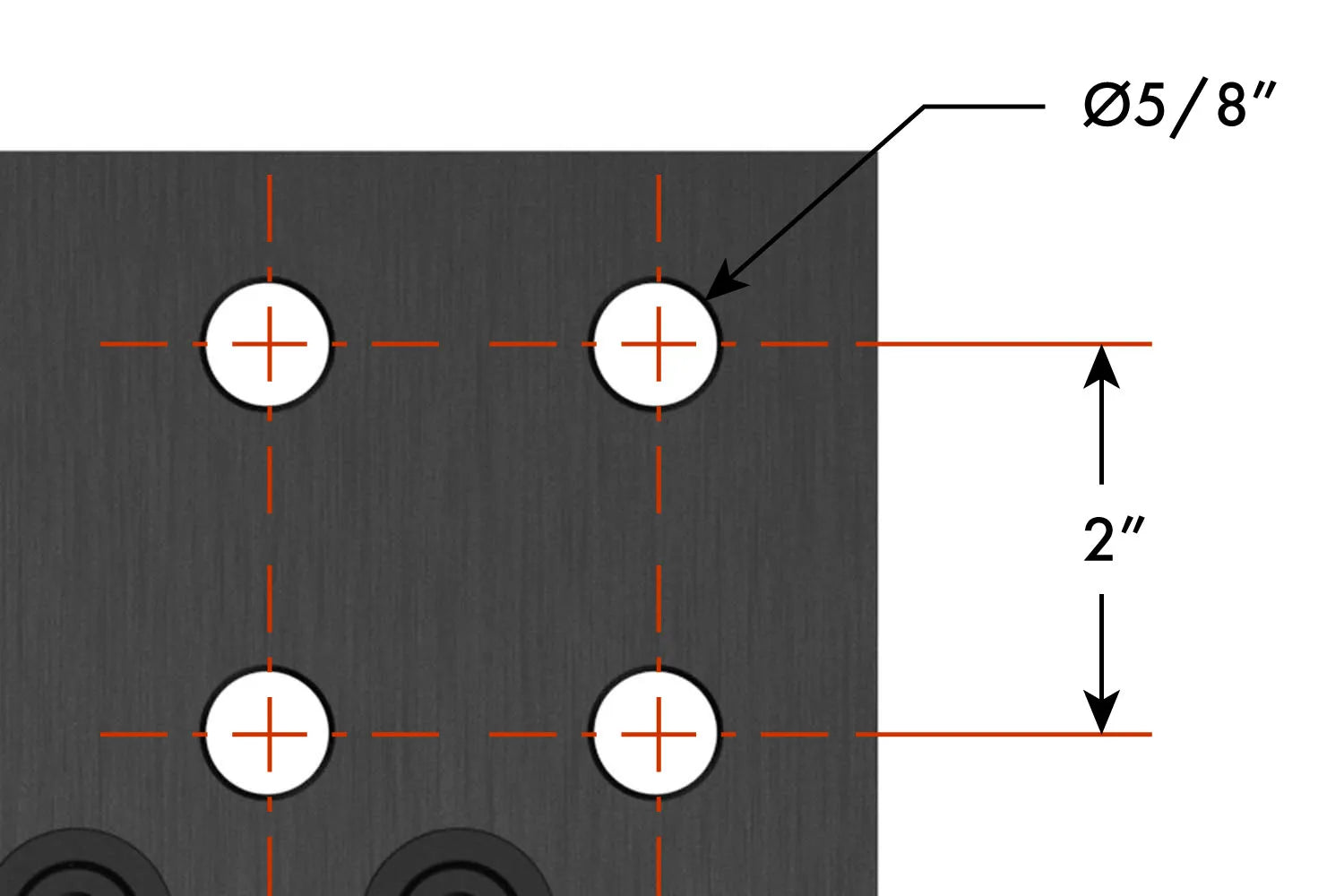

- Hole diameter: .625 +.002 -.000 inches
-
- Hole spacing: 2.000 + – .001 inches
-
- Plate thickness: .47 + – .004 inches
-
- Weight (pounds): 1923
-
Table Accuracy
Hole Diameter
0.625 + .002 -.000
Hole Spacing
2.000 ±0.001
Table Flatness
±0.005 per 24 x 24
Plate Thickness
0.47 ±0.004
Tabletop Finish
Nitrided (Heat Treated)
Surface Hardness
58-62 HRC
Coefficient of Friction
0.37
Top Plate
Material
P20
Hardness
58-62 HRC
Side Plate
Material
Q345B
Hardness
50-55 HRC
- Capacity: 7,000 lbs (2,000 lbs with casters)
- Size: 96 x 48 inches
- Flatness: + – .005 inches per 24 x 24 inches
- Finish: Nitrided
- Hole diameter: .625 +.002 -.000 inches
- Hole spacing: 2.000 + – .001 inches
- Plate thickness: .47 + – .004 inches
- Weight (pounds): 1923
Table Accuracy
Hole Diameter 0.625 + .002 -.000 Hole Spacing 2.000 ±0.001
Table Flatness ±0.005 per 24 x 24
Plate Thickness 0.47 ±0.004
Tabletop Finish Nitrided (Heat Treated) Surface Hardness 58-62 HRC Coefficient of Friction 0.37 Top Plate
Material P20 Hardness 58-62 HRC Side Plate
Material Q345B Hardness 50-55 HRC
