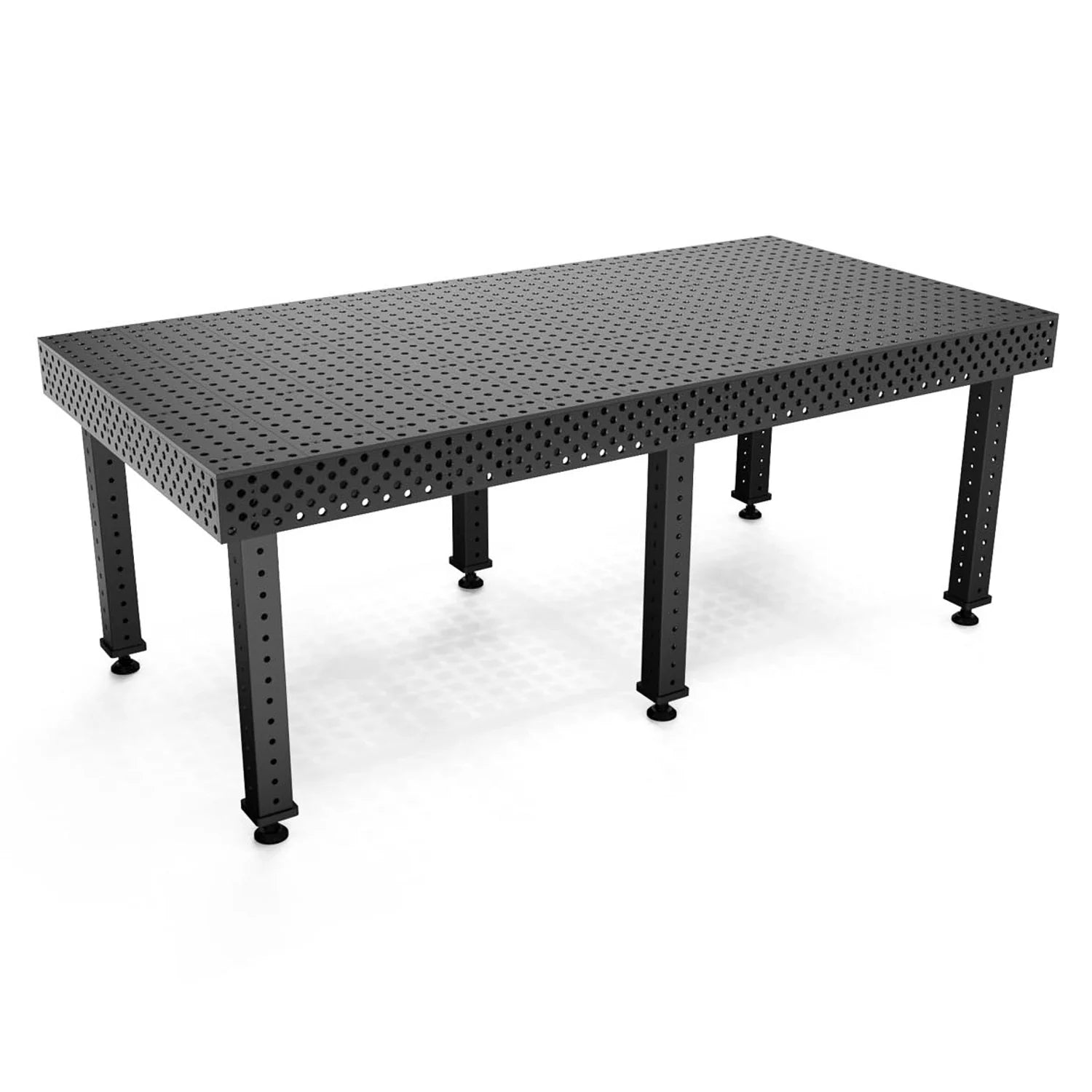

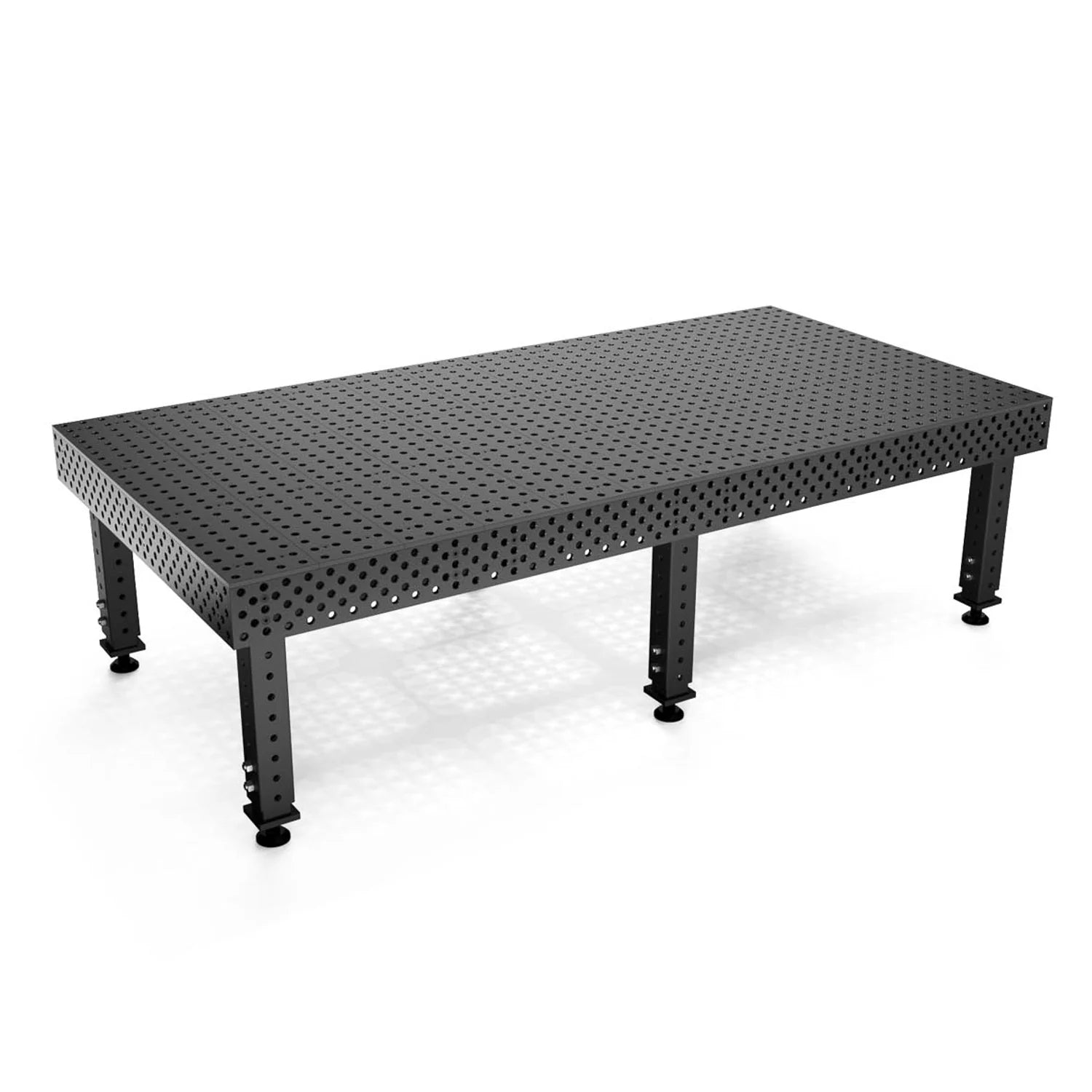

BuildPro Alpha 5 8 Welding Fixture Table

8 x 4 Nitrided – 5 8 Bore Diameter Fixturing Holes

This product ships free of charge to USA (lower 48) and Canada. No import fees or duties are applied. Forklift or Loading Dock are required.

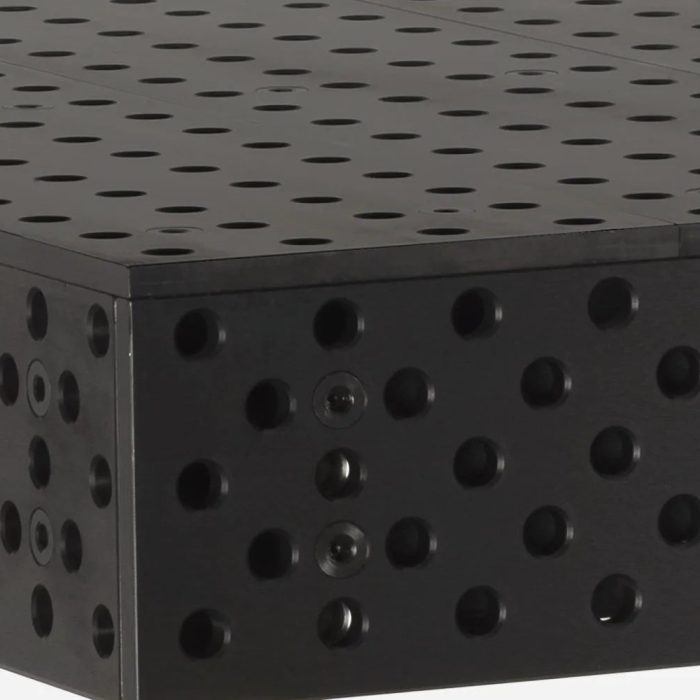

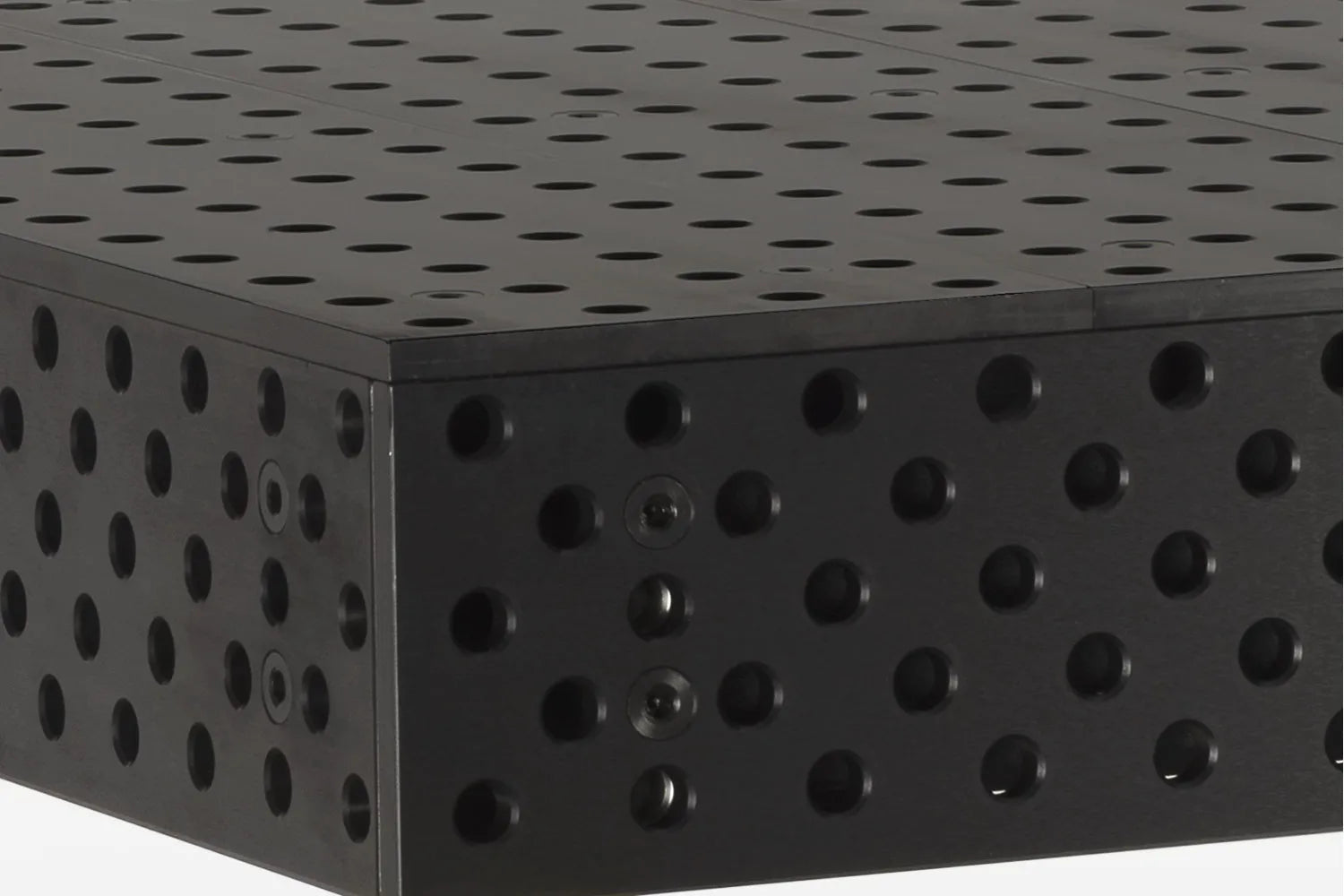

The new heavy-duty table line from BuildPro; it features 5 sides fitted with 5 8″ diameter boreholes for more versatility and expandability than before. Maintaining industry-leading requirements for flatness, squareness, and dimensional accuracy.

Specifications

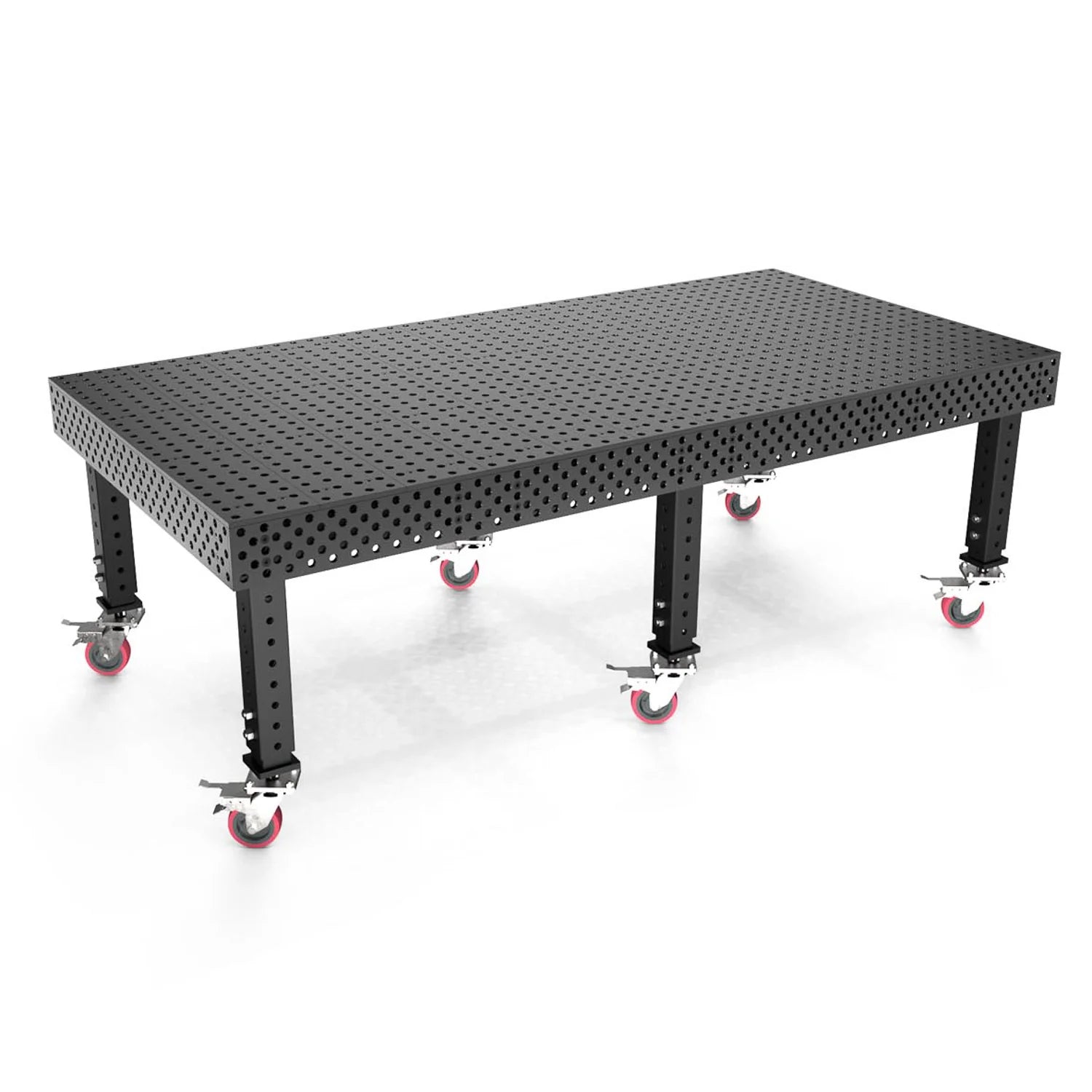

• Capacity: 7,500 lbs (2,400 lbs with casters)


• Size: 96 x 48 inches


• Flatness: + – .005 inches per 24 x 24 inches


• Finish: Nitrided

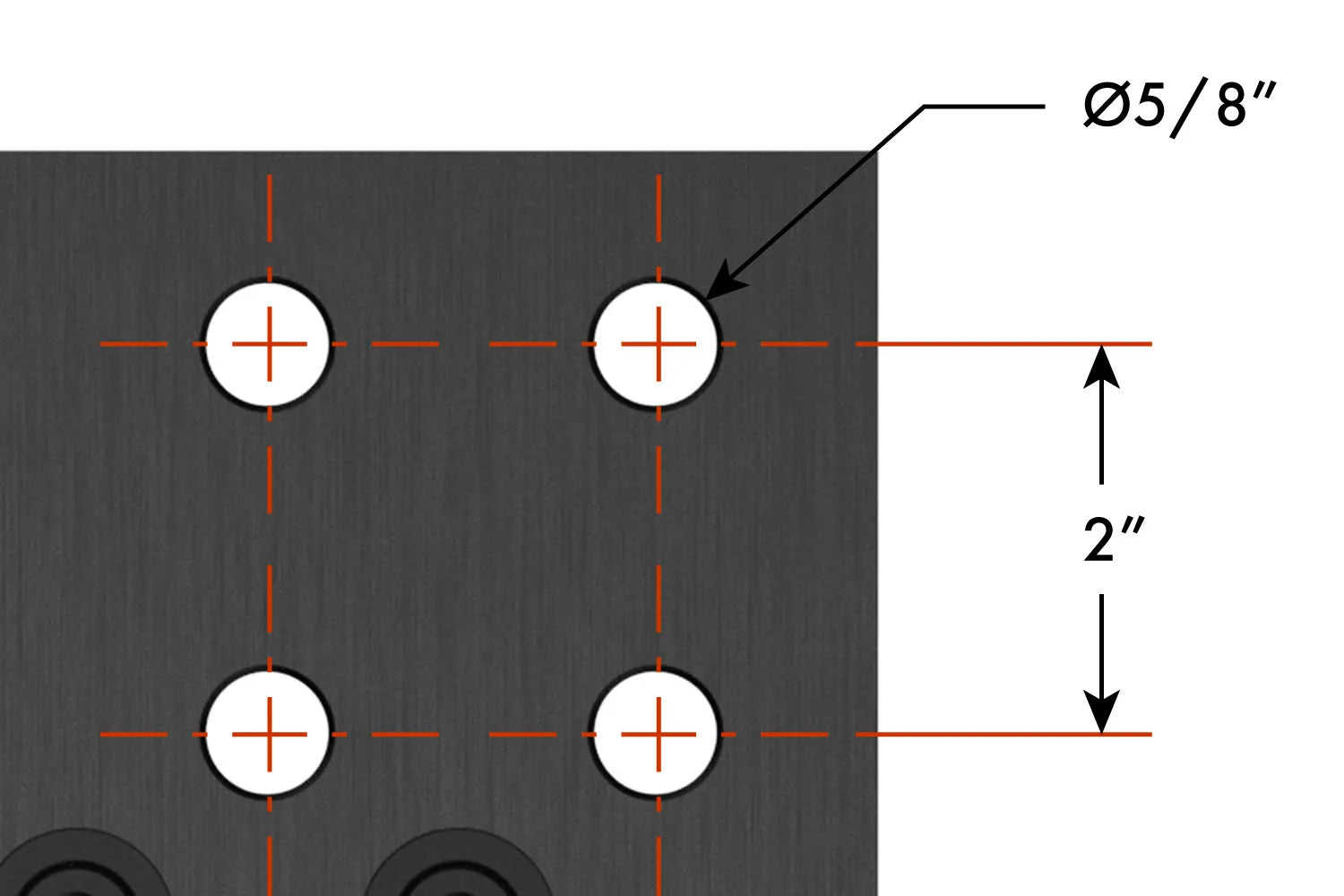

• Hole diameter: .625 +.002 -.000 inches


• Hole spacing: 2.000 + – .001 inches


• Plate thickness: .47 + – .004 inches


• Weight (pounds): 1430

• Table Accuracy Hole Diameter 0.625 + .002 -.000 Hole Spacing 2.000 ±0.001 Table Flatness ±0.005 per 24 x 24 Plate Thickness 0.47 ±0.004 Tabletop Finish Nitrided (Heat Treated) Surface Hardness 58-62 HRC Coefficient of Friction 0.37 Top Plate Material P20 Hardness 58-62 HRC Side Plate Material Q345B Hardness 50-55 HRC   Please allow a 5 business day processing time.  Orders are shipped direct from the manufacturer and do not incur import fees.   Legs Style 30.5" Fixed Legs – TA5-9648Q-A2, 36.5" Fixed Legs – TA5-9648Q-A1, 27"-37" Adjustable – TA5-9648Q-B1, Adjustable Legs w/ Casters – TA5-9648Q-C1 Related products -70% Product on sale BuildPro MAX Welding Fixture Table, 4 x 4 Fashion 0 out of 5 $4,246 $1,273.80 Select options -50% Product on sale Strong Hand Portable FixturePoint Table Package Online now 0 out of 5 $419 $209.50 Select options -70% Product on sale BuildPro Fixturing Plate, 24 x 18 – T52418 Fashion 0 out of 5 $1,330 $399 Select options -70% Product on sale BuildPro MAX Slotted Welding Fixture Table, 4 x 4 For Discount 0 out of 5 $4,485 $1,345.50 Select options -70% Product on sale BuildPro E-Lift Mobile 5 8 Fixturing Turntable Online Sale 0 out of 5 $4,269 $1,280.70 Select options Username or Email Address Password Remember Me Lost your password? Don't have an account yet? Sign up Review Cart No products in the cart. Search for: Search BuildPro Alpha 5 8 Fixture Table, 8 x 4 Nitrided Discount $10,319 $3,095.70Select options BuildPro Alpha 5 8 Fixture Table, 8 x 4 Nitrided Discount $10,319 $3,095.70Select options
