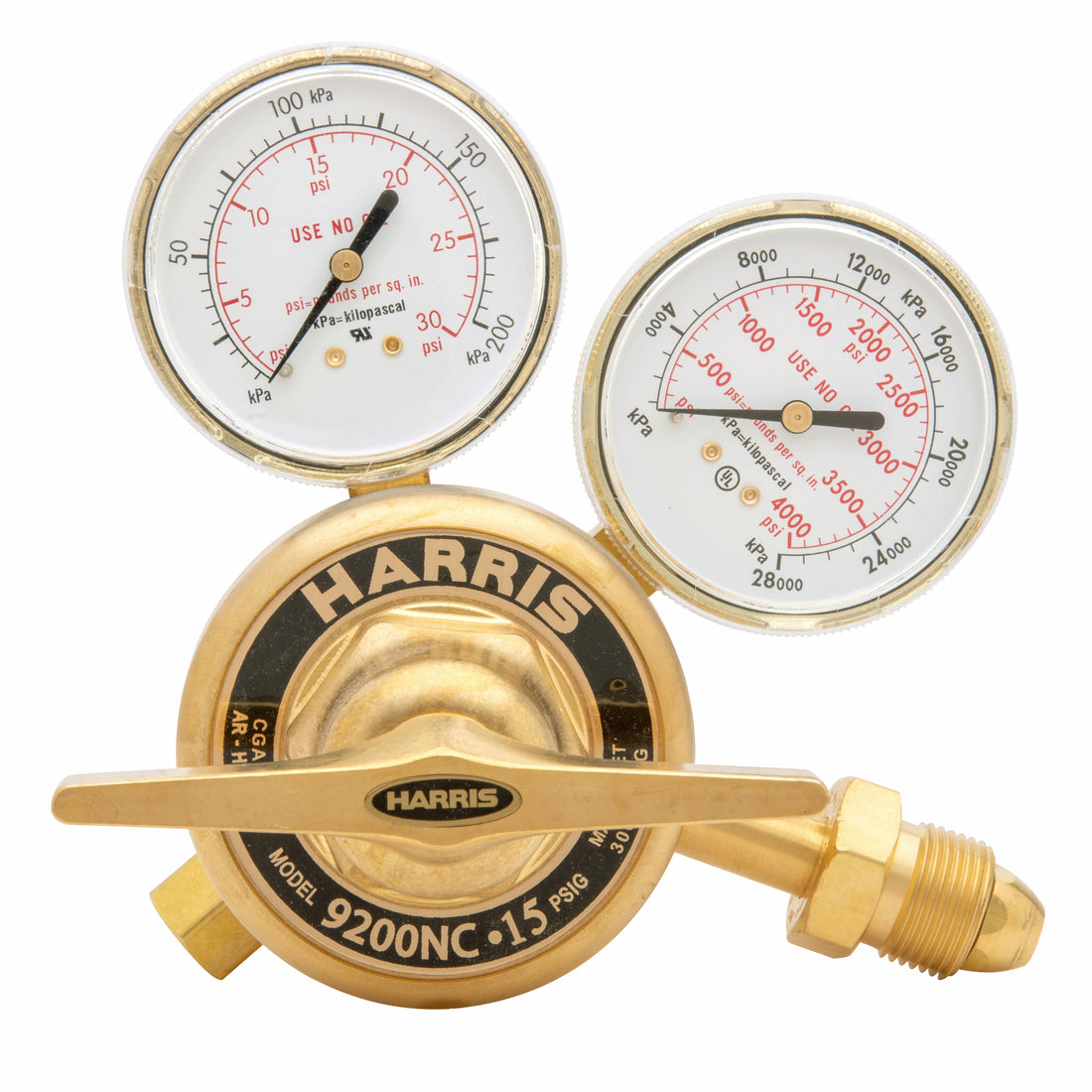

Harris Model 9200-50-580 Two Stage Inert Gas Regulator



Model 9200 is a standard for general purpose laboratory, industrial and welding applications. This heavy duty model is designed for applications where a constant delivery pressure is required over a wide range of inlet pressures. Model 9200 features a neoprene diaphragm, self-reseating relief valve, one-piece encapsulated seat design with internal filter and Teflon® seat and T adjustment screw bar handle.

Features

• Standard heavy duty, two-stage regulator for general purpose laboratory, industrial and welding applications
• Designed for use when constant delivery pressure is required over a wide range of inlet pressures
• Brass body and bonnet for longer service life
• Easy-to-operate brass T screw bar handle
• 2.5 Brass dual scale (psi bar) easy-to-read gauges
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
• Neoprene diaphragm for better pressure control
• Use for welding applications where neoprene diaphragms are acceptable
• Equipped with tamper proof, self-reseating, internal safety relief valve
• • Harris Part Number: 3302217
