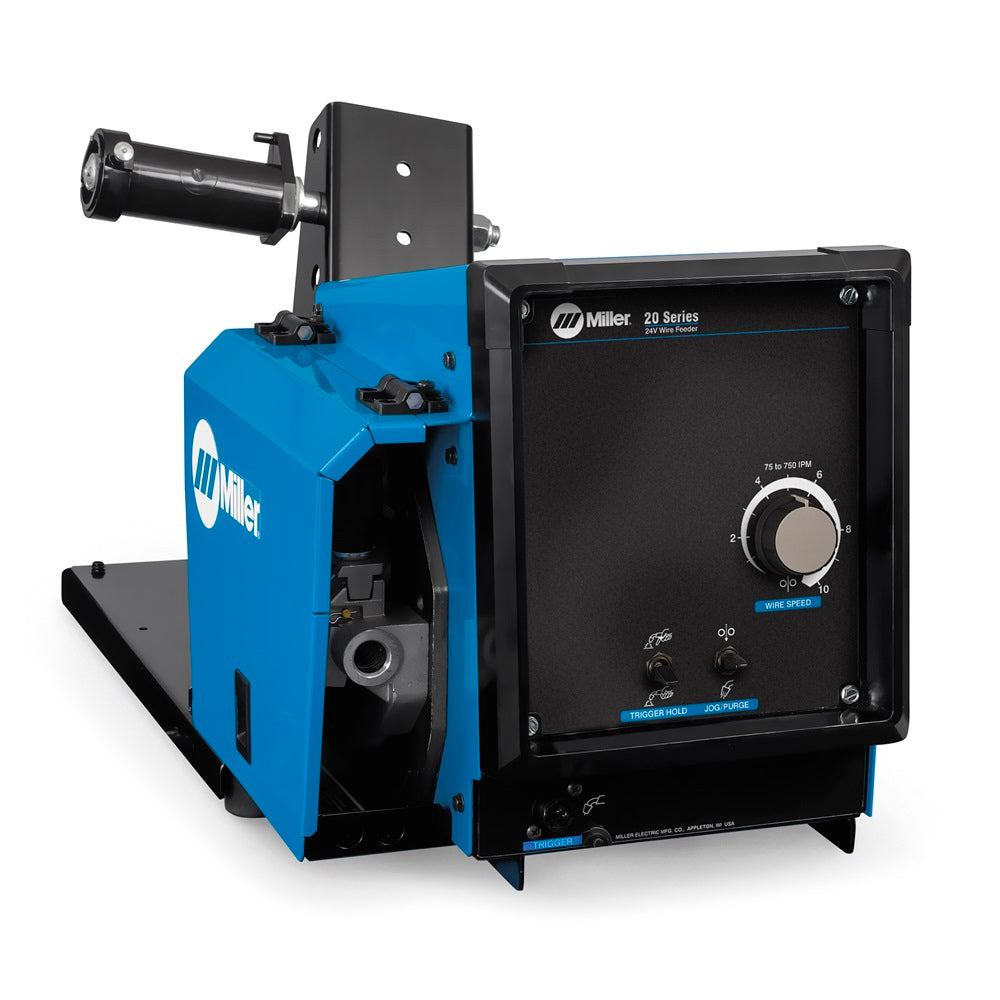

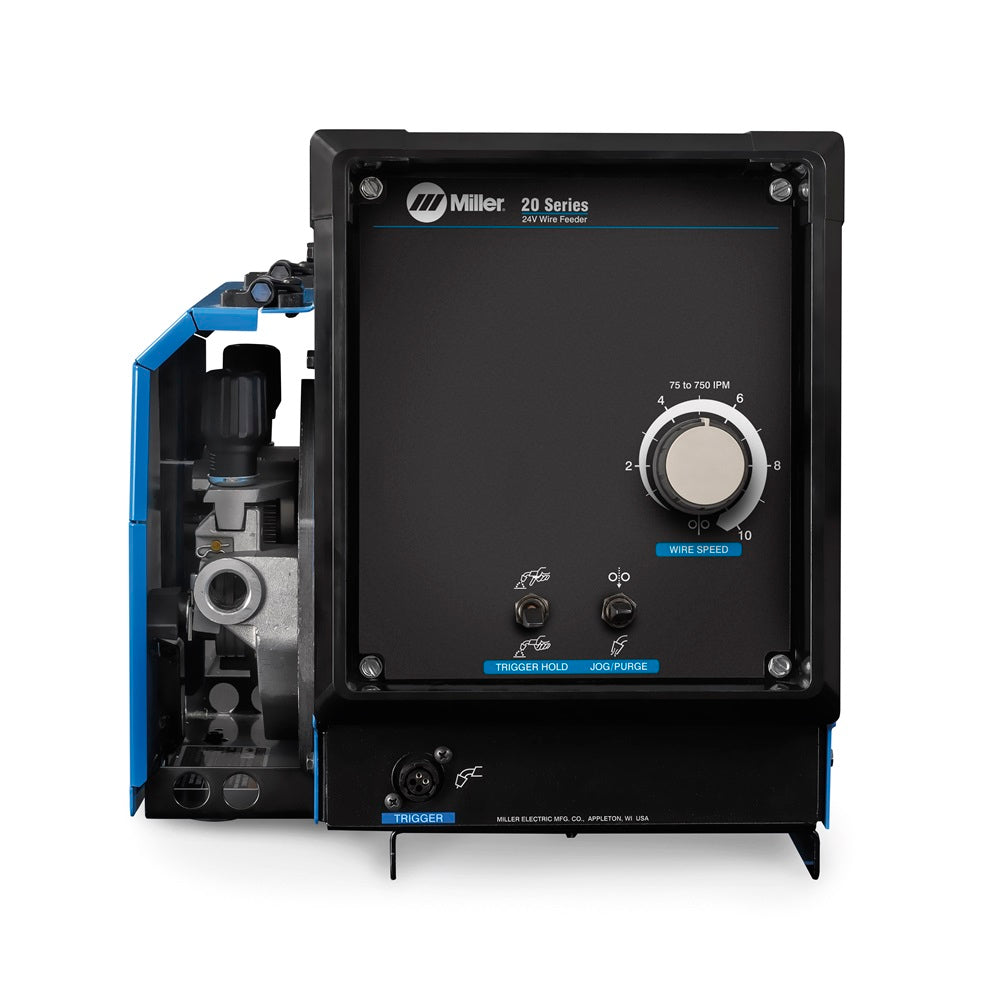

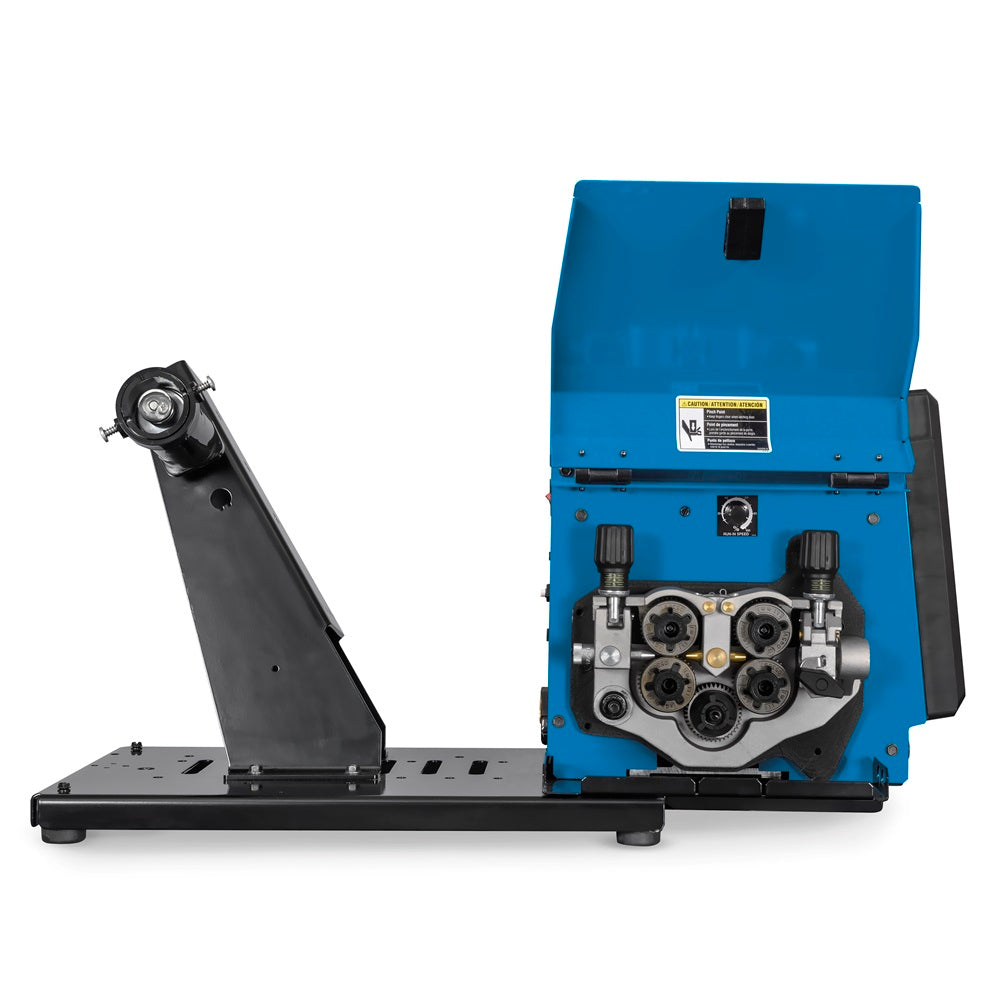

Miller 20 Series Basic 4-Roll Wire Feeder



Simple and cost-effective four drive roll wire feeder for industrial manufacturing and fabricating.

• Wire feed speed range is 75–750 ipm. This offers a wider operating range than
  the competition.

• Trigger hold control allows operator to make long extended welds without having to hold gun trigger.

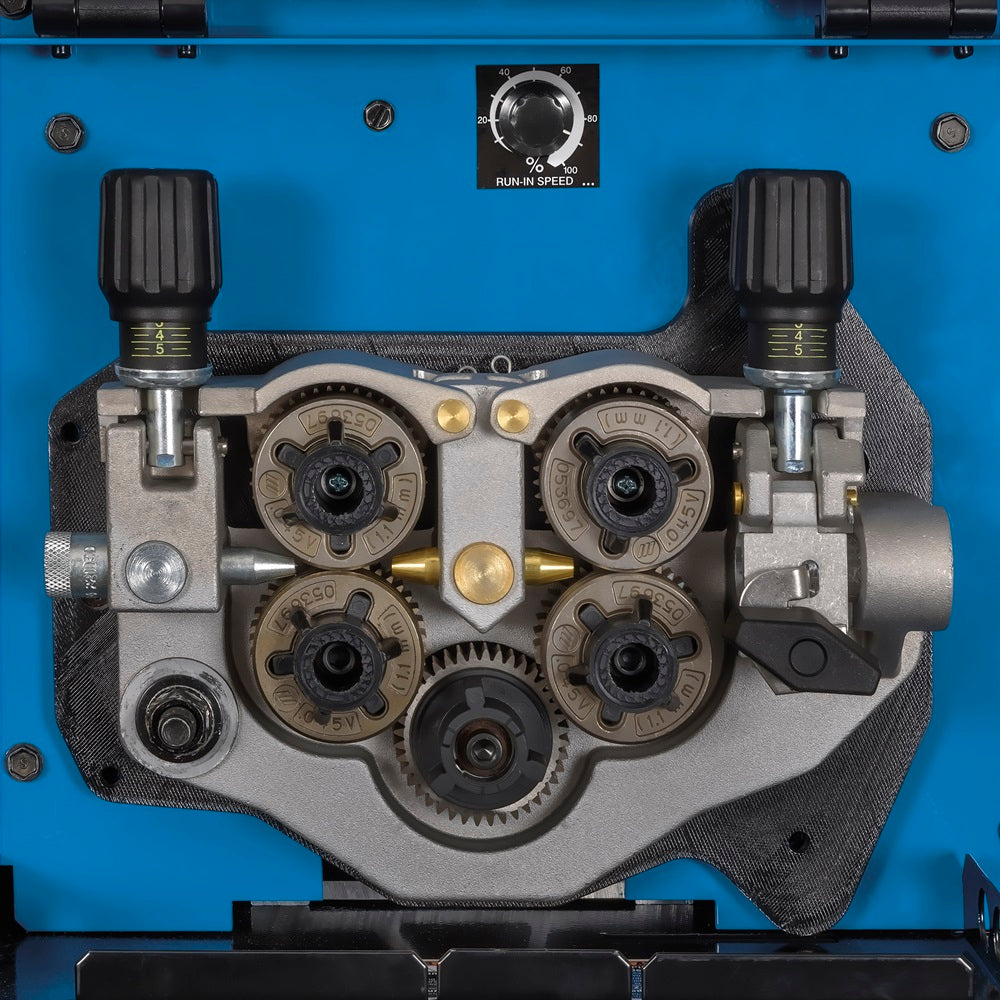

• Four gear-driven drive rolls offer smooth, positive and accurate wire feed with long, uninterrupted service life.

• On-board burnback and motor ramp control offers unmatched starting and
  stopping performance on a variety of power sources. This helps to ensure positive arc starting performance.

• 16-gauge sheet metal housing is robust in rough service applications and less prone to damage.

• Digital meter and remote voltage control are standard on digital model.
• Parameter adjustments can be made in weld cell or at a remote location. (Optional on basic model.)

• Adjustable run-in control is standard on digital model for better arc-starting performance on a variety of wires. (Optional on basic model.)

• What s Included

  • 20 Series Basic Feeder

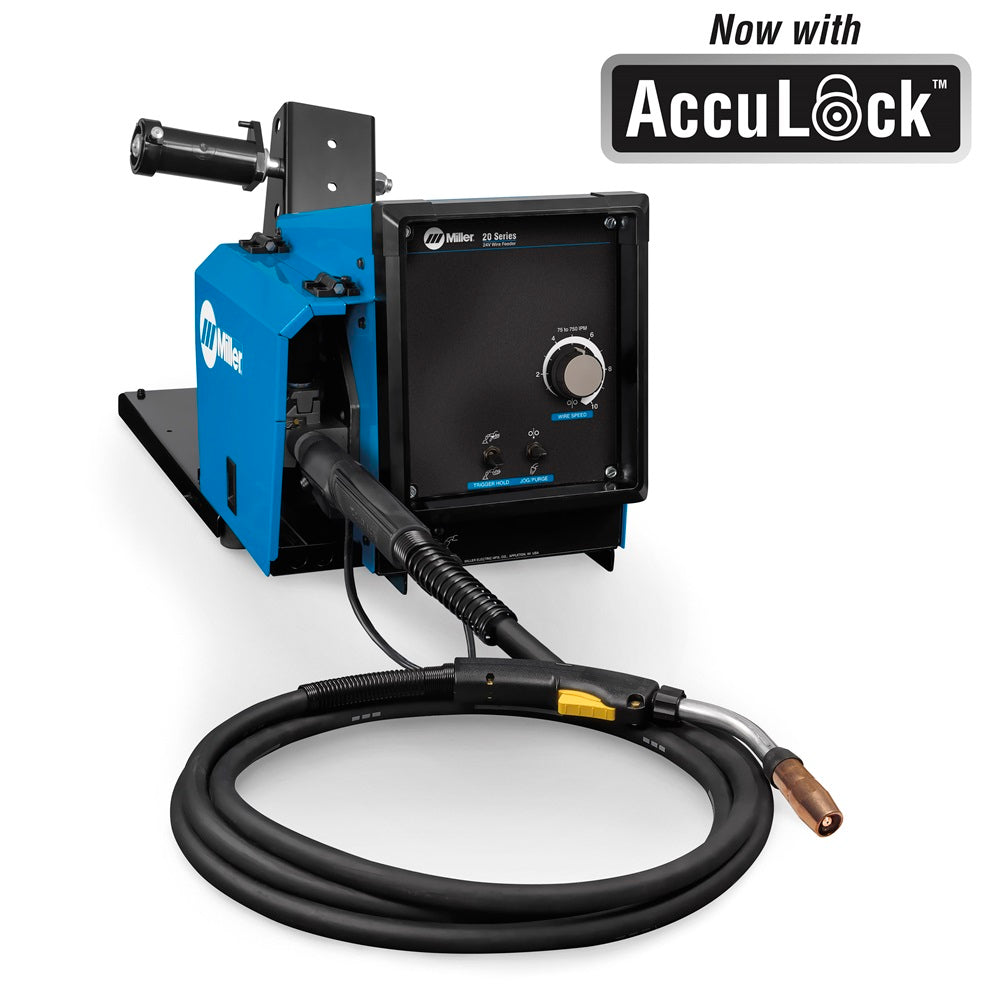

  • Bernard Best of The Best 400A Gun
  • AccuLock contact tips, .035 (QTY 3), .045 (QTY 2)
  • .035-.045 reversible dual V drive rolls

  • Product Name Part Number		Miller 20 Series, Basic, Q4015, Drive Roll Kit Wire Feeder 951779001
    Welding Processes		MIG (GMAW), Flux-cored (FCAW)
    Input Voltage		24 VAC, 50 60 Hz
    Input Current		3.5A
    Dimensions		H: 16 in. (406 mm) W: 12.375 in. (314 mm) D: 27.875 in. (708 mm)
    Weight		46 lb
    Warranty		3-Year Parts & Labour
