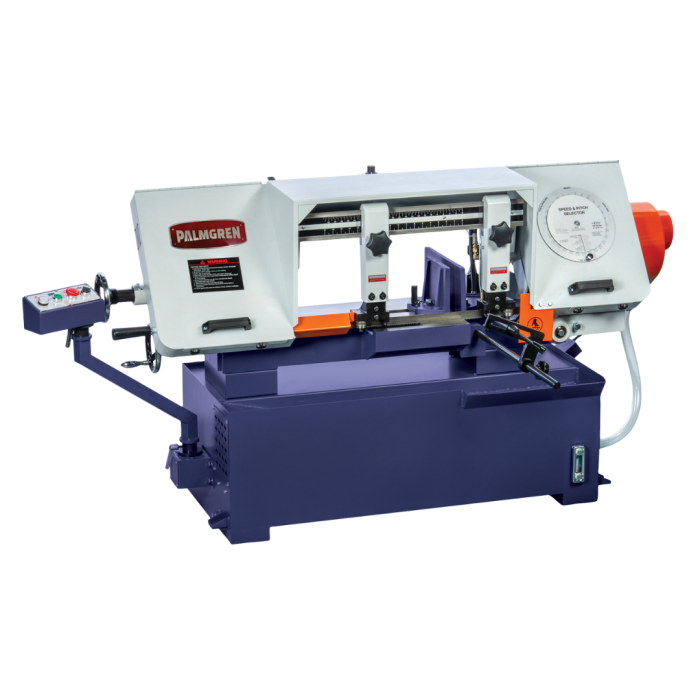

Palmgren 10 x 16 EVS Mitering Horizontal Bandsaw



Performance and accuracy describe the Palmgren 10 x 16 horizontal band saw. This general purpose cut-off saw was designed with the operator in mind. Equipped with our swing away control panel which allows the operator access to all the machine controls from both the front, as well as, the back of the machine. Available with either single phase or three phase power, these band saws cover a wide variety of applications in machine shops, maintenance shops, tool rooms, fabrication and welding shops. Built to offer more standard features designed to provide maximum performance, greater accuracy and more economical operation.

Features:

• Swing away control panel relocates saw controls to a single location for greater operator convenience and safety
• Hydraulic down feed control is easily adjusted matching the proper feed rate to the materials being cut
• Variable speed drive train allows the operator to fine tune the blade speed to match their cutting application
• Hardened and ground gears operating in an oil bath deliver smooth, positive surface feet per minute to the blade
• Adjustable tungsten carbide and precision ball bearing blade guides provide close positioning of the guides to the material being cut for square accurate cuts
• Cast iron adjustable guide arms
• Blade speed & pitch selector
• Convenient top load blade changes
• Large hand wheel with blade tensioning guide accurately measures blade tension
• Replaceable blade brush
• Coolant system delivered through both blade guides
• Part Number: 9683289

• Free Shipping is not available on this product, contact us for a freight quote: [email protected].



  SPECIFICATION		DESCRIPTION
  Voltage		230V
  Phase		1 PH
  Rectangle @ 90 Degrees		10 in x 14 in and 2 in x 16 in
  HP		1.5 HP
  Round @ 90 Degrees		10 in
  Round @ 45 Degrees		8.5 in
  RPM		1720
  Blade Length		135 in
  Cut Capacity		10 in x 16 in
  Length		77 in
  Width		30 in
  Height		49 in
  Weight		924 lbs.
