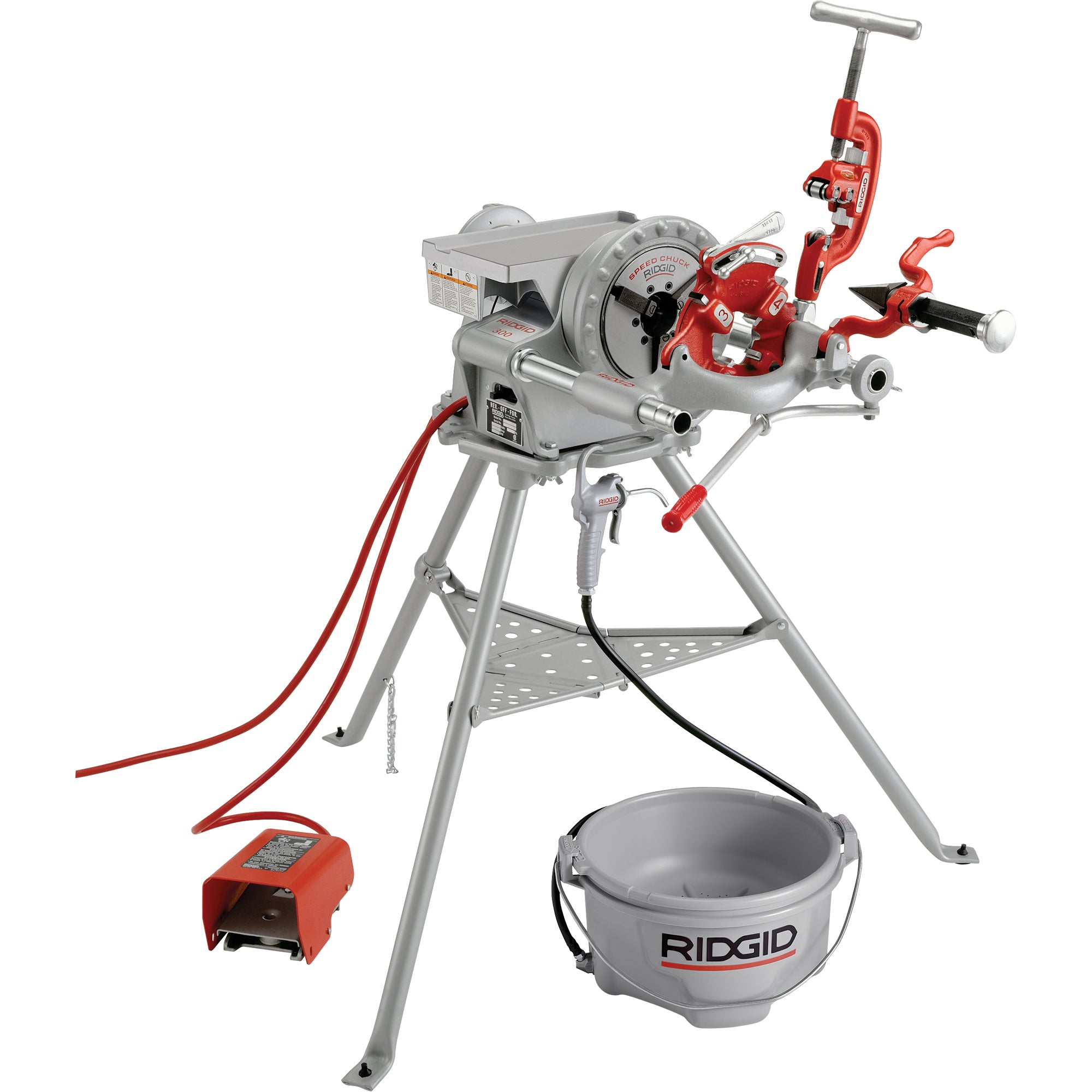

Ridgid Model 300 Power Drive Complete Threading System

Description

• The 300 Complete system includes everything you need to make threads quickly and easily in the field or in your shop
• The 300 Complete system offers versatility and function of quick tear down and easy transportation to be able to go wherever you need to go
• Ridgid® Speed chuck
• Reversible 1 2 HP universal motor
• Recessed On Off Reverse switch
• Ideal for use with Ridgid® roll groovers
• Includes: (97065) NPT Die Head Quick-Open R.H., (47745) 1 2 – 3 4 Universal Alloy Die Set, (47750) 1 – 2 Universal Alloy Die Set, (42370) Model 360 1 8 -2 Full Floating, Self Centering Cutter, (68815) Carriage 311 w lever, (42575) #32 Transporter (for Power Drives and TRISTAND(R) Vises), (42365) Reamer 341, (42360) Stand 1206, (10883) Oiler w 1 Gal. Premium Thread Cutting Oil, (22638) Clip-On Tool Tray, (41855) Power Drive Only
• Part Number – TCX520

• Specifications

  Spindle Speed

  38 RPM

  Rod Threading Capacity

  1 4 – 2

  Voltage

  115 V

  Power

  1 2 HP

  Pipe Threading Capacity

  1 8 – 2

  Weight

  212 lbs.

  Frequency

  50 Hz – 60 Hz

  Motor Type

  Universal
