SSC Controls G500-MO Heavy-Duty Foot Switch

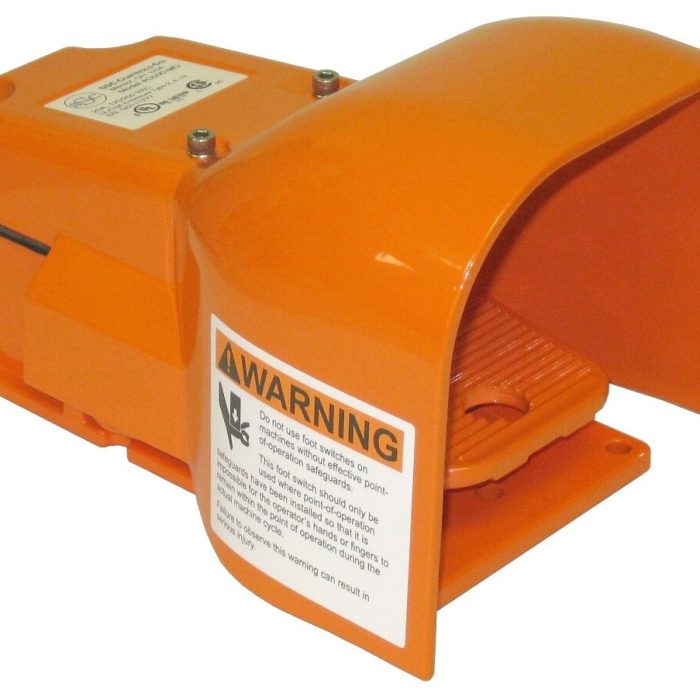

The G500-MO is a heavy-duty foot switch that makes it easy to turn electrical equipment on and off with the foot, freeing the hands to perform other operations or providing ergonomic improvement to a workstation. Features all aluminum construction, an oversized guard (5.5” high, 6.2″ wide) with enough room to fit large boots, and an oil water splash dust-resistant enclosure (when used with the proper cable clamp). This is a momentary foot switch, which means that it actuates when your foot is on the pedal, and de-actuates when you release your foot from the pedal. Includes a single Honeywell 20-amp 125 250VAC-rated switch with one common, one normally open, and one normally closed contact (SPDT, Form C). Side cover flaps help protect pedal lever and shaft from oil, solvents, and water. 3 4″-14 N.P.T. threaded conduit entry in back. Ideal for factory, shop, metalworking, iron workers, boom lifts, food processing, riveting, bending, and many more applications. Directly replaces Linemaster® Hercules 531-SWH, 531-SWHO, and 531-SWHOX (slight difference in height). UL CSA NEMA Enclosure Type 2, 4, & 13. IEC rating IP56. Size: 9.2″ L x 6.2″ W x 5.5″ H. UL Listed and CSA Certified.  Made in USA.

• Pedal Action: momentary

• # of Switches: 1

• # of Stages: 1

• Rating: 20A, 125 250 VAC; 1 HP, 125 VAC; 2 HP, 250 VAC; .5A, 125 VDC; .25A, 250 VDC

• Linemaster® 531-SWH, 531-SWHO, 531-SWHOX Hercules (Linemaster® is a registered trademark of the Linemaster Switch Corporation); 9002AW2 (add double break switch); Grainger® 6GPC1; Allied 70184026; McMaster-Carr® 7372K11 or 7372K31
• Part Number: G500-MO
