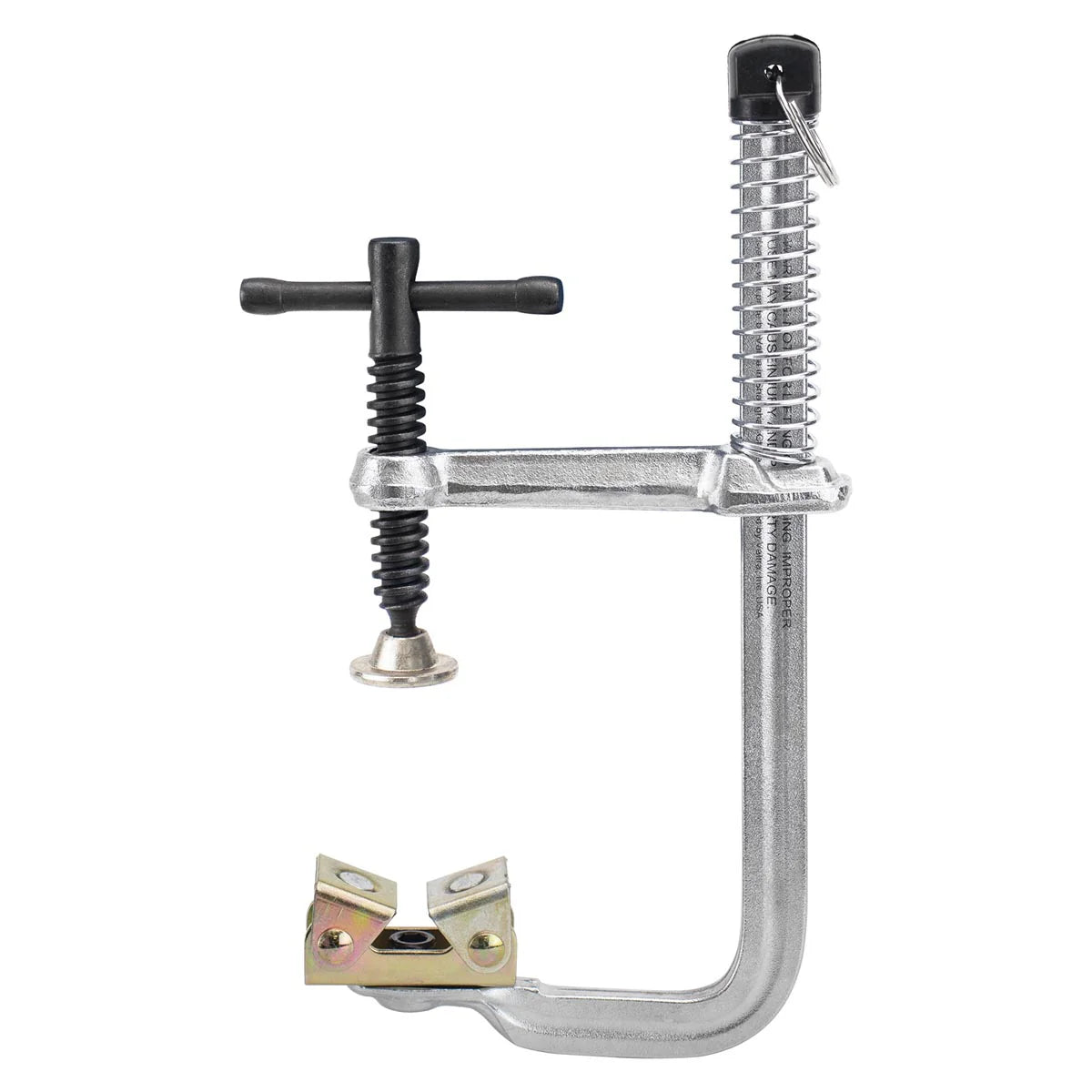

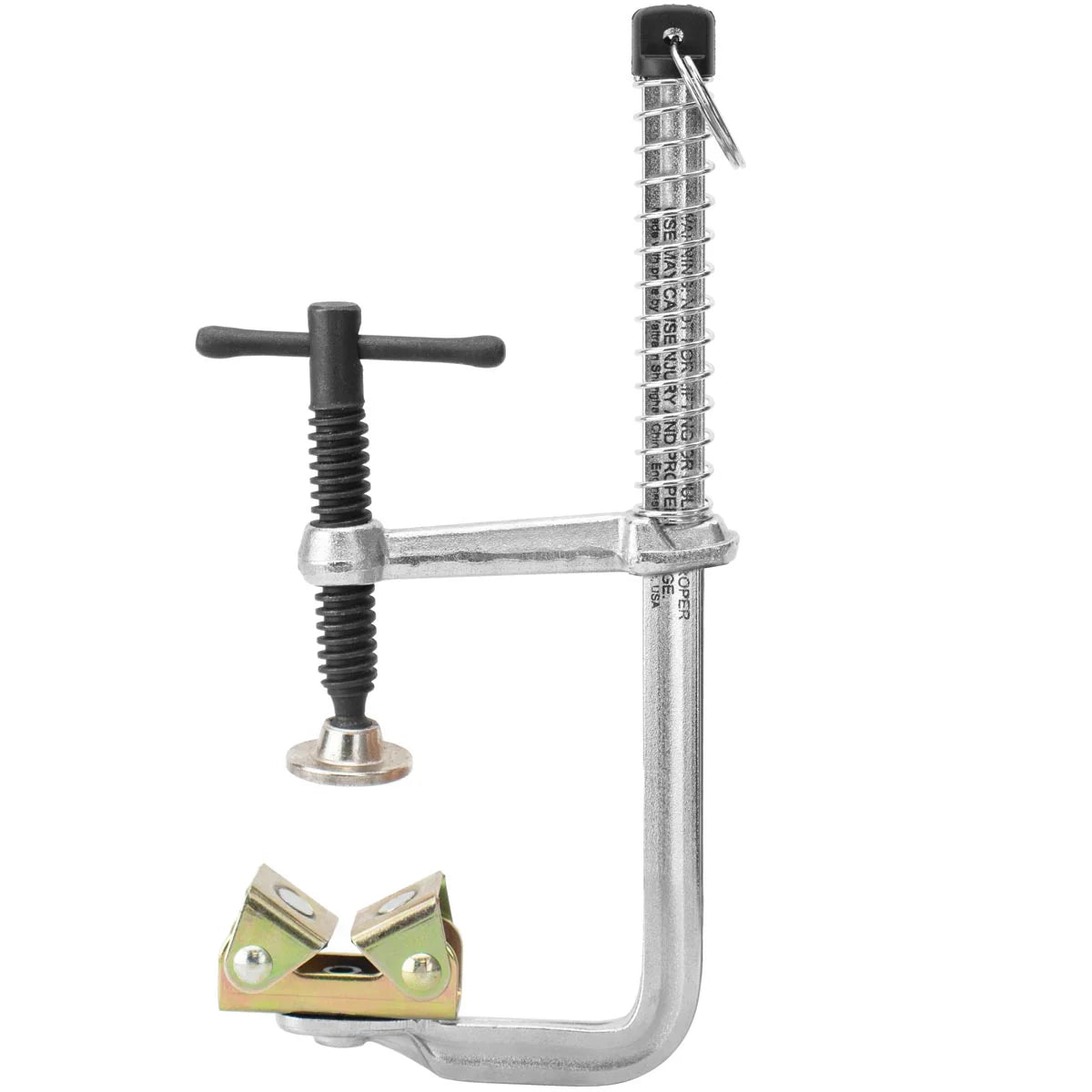

Strong Hand MagSpring™ Clamps

Spring loaded, one-handed clamps

These unique clamps allow one-handed operation during clamping, taking the frustration out of parts alignment and fitup.

• Light Duty. Clamping Pressure: 300 ~ 500 lb.
• The spring-loaded, one-handed clamp includes quick-set V-Pad.
• The Spring Arm in conjunction with the V-Pad allows users to free up one hand to position the workpiece.
• * Do not use with impact wrenches.

• Part No.		Capacity (in)		Throat Depth (in)		Clamping Pressure (lb)		Tapped Hole (in)		Weight (lb)
  UbV65		4.5		2.5		300		1 4-20		0.9
  UDV45		3		3.3		500		5 16-18		1
  UDV65		4.5		3.3		500		5 16-18		1

  Capacity | Clamping Pressure	4.5", 300 lb. (UBV65), 3", 500 lb. (UDV45), 4.5", 500 lb. (UDV65)
