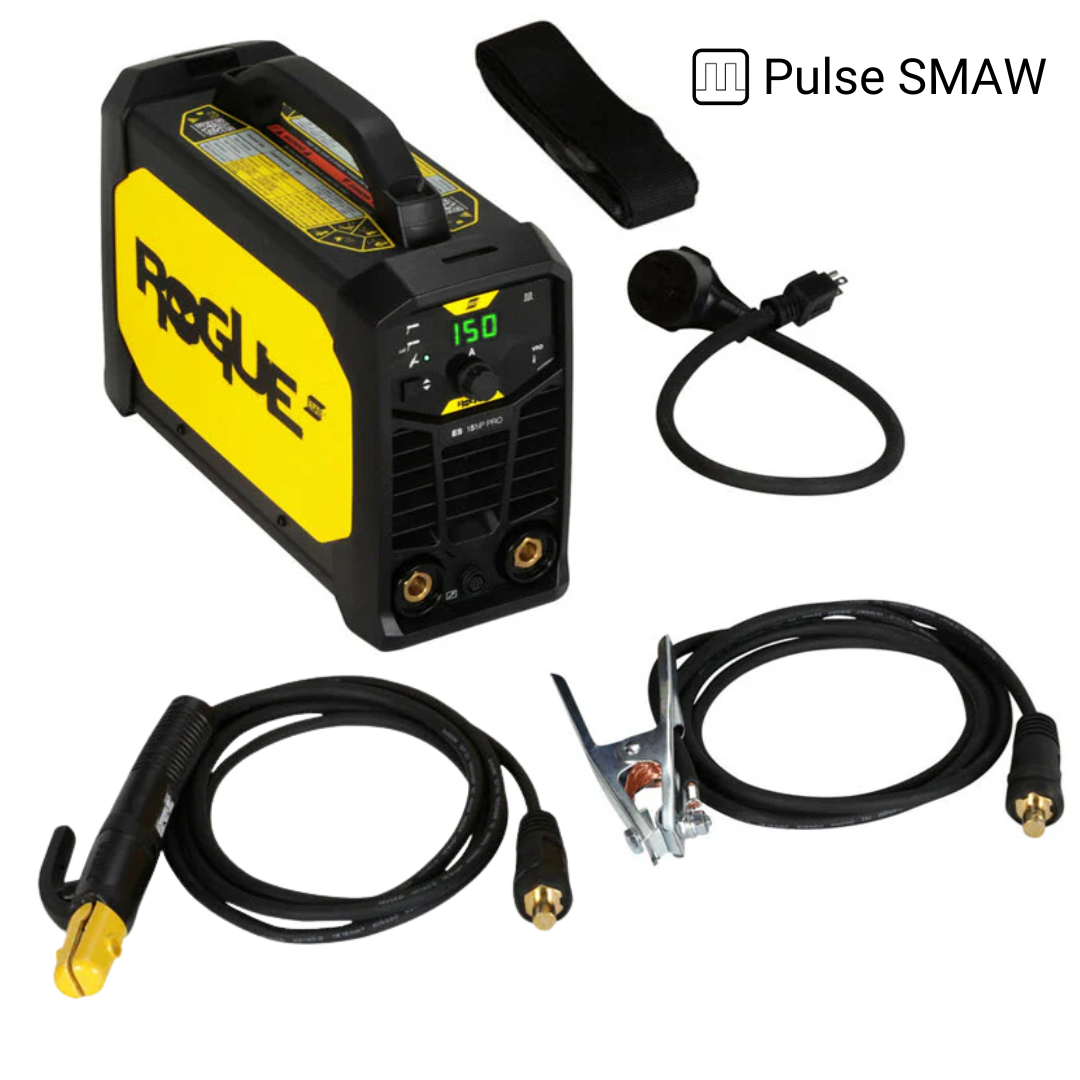

ESAB Rogue ES 151iP PRO Pulsed Stick Welder



The Rogue ES is a robust and durable power source for the professional welder. The machine provides state-of-the-art welding performance and reliability through use of the latest high performance power electronics and digital control; ensuring a precise
consistent arc.

he Rogue ES provides smooth DC (Direct Current) welding power which allows you to weld a variety of metals, such as alloyed and non alloyed steel, stainless steel, and cast iron. Featuring Arc Force and Hot Start settings for more control over your arc. Digital microprocessor offers more control over all arc parameters and provides best-in-class welding performance. The Rogue ES 151iP PRO welds 3.2 mm (1 8 in.) electrodes.

New Pulse SMAW functionality enhances Rogue s performance and improves the heat input control, to minimize thin gauge materials distortion , facilitate out-of-position welding with no undercuts and reducing spatter, thus helping to effectively avoid a number of welding defects. Rogue ES can TIG weld mild-steel or stainless steel via LIVE TIG  functionality (TIG torch sold separately) for even more versatility

Specification		Rogue ES 151iP
Input Power		120 – 230 VAC ± 15%, 50 60 Hz
Maximum Output Power		150 A
Rated kVA		3.9 kVA
Energy Save Mode		50 W
Open Circuit Voltage		78 V DC
Stick Welding Output (230V)		150 A @ 25% Duty Cycle, 84 A @ 60%, 65 A @ 100%
Stick Welding Output (120V)		90 A @ 25% Duty Cycle, 58 A @ 60%, 45 A @ 100%
TIG Welding Output (230V)		150 A @ 25% Duty Cycle, 84 A @ 60%, 65 A @ 100%
TIG Welding Output (120V)		130 A @ 25% Duty Cycle, 84 A @ 60%, 65 A @ 100%
Current Range		10-150 A (230V), 10-130 A (120V)
Pulse SMAW Frequency		0.2 – 100 Hz
High Frequency		No
AC TIG (Aluminum)		No
Foot Pedal Compatible		Yes – ESAB Pedal SSC Pedal
Operating Temperature		-10 to +40 °C (+14 to +104 °F)
Enclosure Class		IP23S
Dimensions		403 x 153 x 264 mm (15.8 x 6 x 10.4 in.)
Weight		8.25 kg (18.2 lbs)
Special Features		Dual voltage input, Pulse SMAW functionality, superior arc characteristics, generator compliant, portability, robust design, PFC for stable arc​.

Spec Sheet     Accessories
