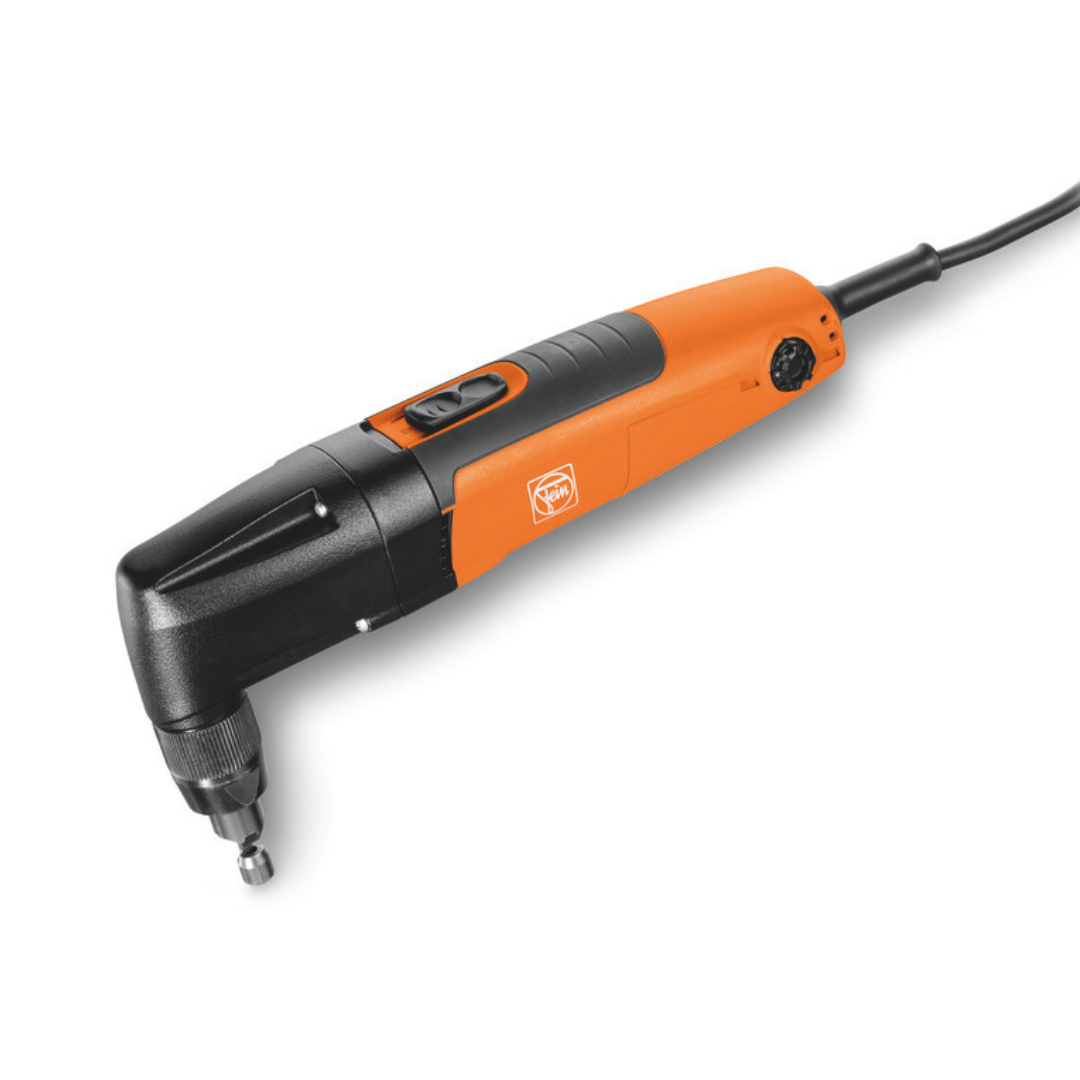

FEIN BLK 1.3 CSE Sheet Metal Nibbler up to 18 Gauge

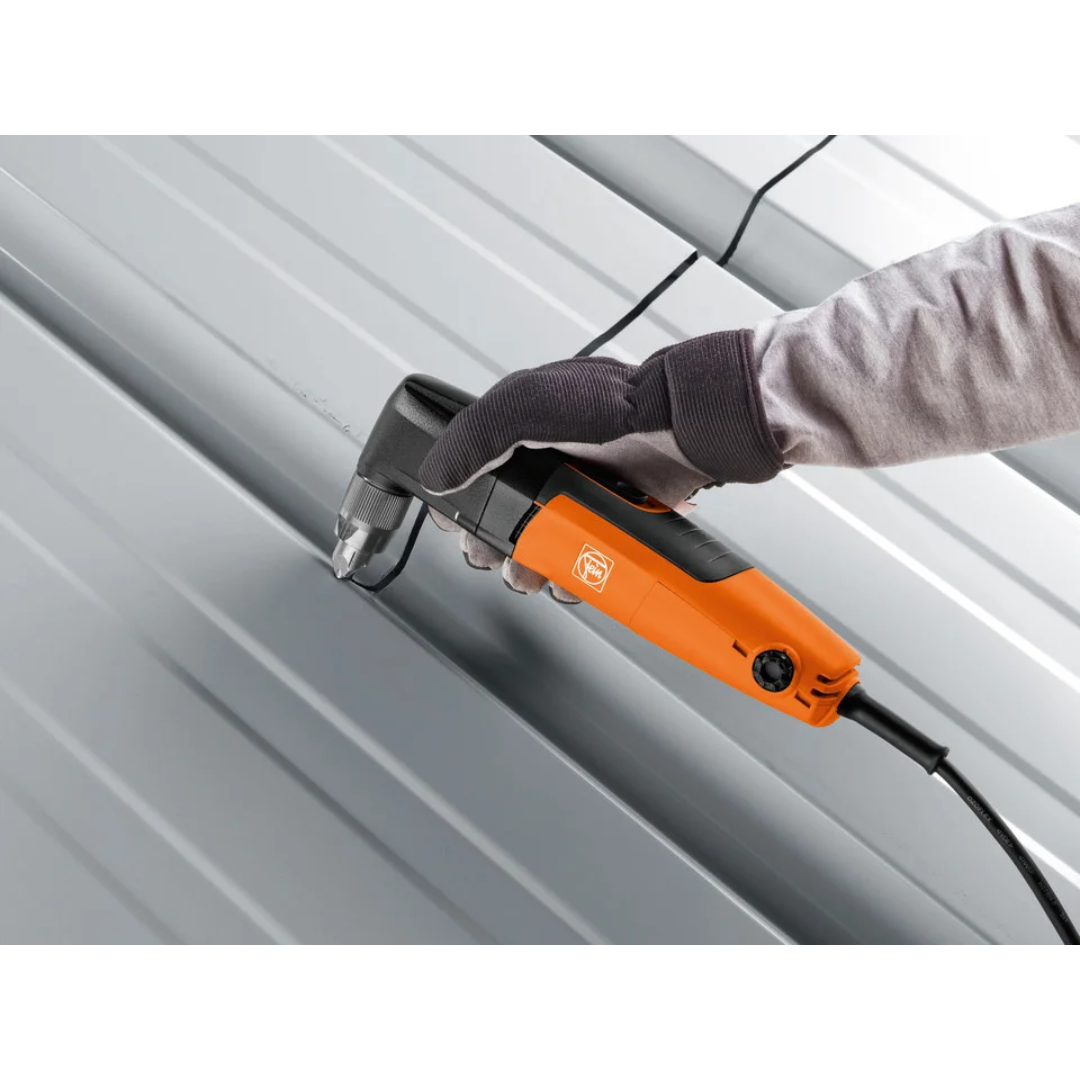

Compact and rapid nibbler for corrugated sheet metals

Sheet metal nibblers are versatile tools used for cutting intricate shapes and patterns in sheet metal with precision and efficiency. Unlike traditional cutting methods like shears or saws, nibblers offer greater control and maneuverability, allowing users to easily navigate tight curves, corners, and irregular shapes without distortion or burrs.

Whether for HVAC ductwork, automotive body repair, or metal fabrication projects, FEIN nibblers excel in delivering clean, accurate cuts, making them invaluable for tasks requiring intricate detailing and professional-quality results.

Features:

• Chip protection mesh on vent slots.
• Low operating costs due to long tool life of punch and die.
• Rotating punch for up to 30% longer service life.
• QuickIN rapid change system.
• Stainless steel up to 24 gauge [0.6 mm].
• Motor with outstanding performance and durability.
• 6 ft. [5 m] cable.
• Manufacturer Part No. 7 232 42 60 12 0

• Items Included:

  • (1) Die for corrugated sheet metal (30109169009), mounted
  • (1) Punch (63602050000)

  • Specifications:

    Power consumption		350 W
    Power output		210 W
    Strokes		1,000 – 1,500 spm
    Cutting speed		8 [2.3] ft min[m min]
    Steel 58,000 lbf in²		3 64 [1.3] in[mm]
    Steel 87,000 lbf in²		1 32 [0.8] in[mm]
    Steel 116,000 lbf in²		1 32 [0.6] in[mm]
    Non-ferrous metals up to 36,000 lbf in²		3 32 [2] in[mm]
    Cutting width		3 16 [4] in[mm]
    Immersion Ø with die		3 4 [19] in[mm]
    Radius of smallest curve		1 2 [15] 3 4 [20] in[mm]
    Cable with plug		16 [5] ft[m]
    Weight		3.97 lbs
