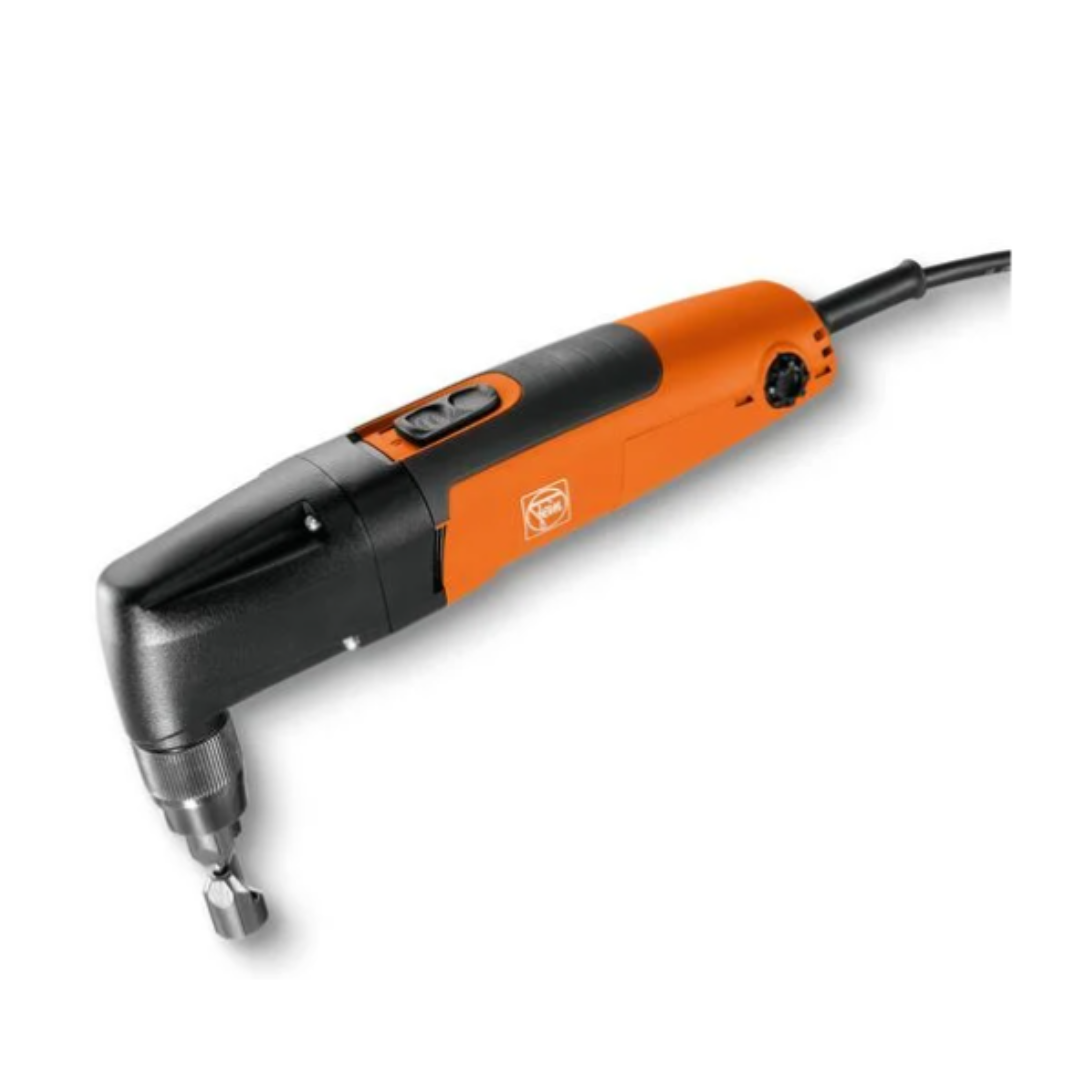

FEIN BLK 1.6 E Sheet Metal Nibbler up to 16 gauge

Compact and rapid nibbler for corrugated sheet metals

Sheet metal nibblers are versatile tools used for cutting intricate shapes and patterns in sheet metal with precision and efficiency. Unlike traditional cutting methods like shears or saws, nibblers offer greater control and maneuverability, allowing users to easily navigate tight curves, corners, and irregular shapes without distortion or burrs.

Whether for HVAC ductwork, automotive body repair, or metal fabrication projects, FEIN nibblers excel in delivering clean, accurate cuts, making them invaluable for tasks requiring intricate detailing and professional-quality results.

Features:

• Rotating punch for up to 30% longer service life.
• Cutting direction setting can be changed in 45° increments up to 360° using tool-free rotating cutting head.
• QuickIN rapid change system
• Variable speed

• Chip protection mesh on vent slots.
• Stainless steel up to 22 gauge [0.7 mm].
• Retrofittable trapezoid profile set up to 6-5 16 in [160 mm] deep channels.
• 16 ft. [5 m] cable.
• Manufacturer Part No. 7 232 38 60 12 0

• Items Included:

  • (1) die (30109141003), mounted
  • (1) punch (63602048004), mounted
  • (1) allen key 6 mm

  • Specifications:

    Power consumption		350 W
    Power output		210 W
    Strokes		800 – 1,500 spm
    Cutting speed		6 [1.9] ft min[m min]
    Steel 58,000 lbf in²		1 16 [1.6] in[mm]
    Steel 87,000 lbf in²		3 64 [1] in[mm]
    Steel 116,000 lbf in²		1 32 [0.7] in[mm]
    Non-ferrous metals up to 36,000 lbf in²		3 32 [2.5] in[mm]
    Cutting width		3 16 [5] in[mm]
    Immersion Ø with die		7 8 [22] in[mm]
    Radius of smallest curve		1-1 4 [30] 1-1 2 [35] in[mm]
    Cable with plug		16 [5] ft[m]
    Weight		3.97 lbs



    Full Product Data Sheet
