Lincoln Electric Innershield NR-232

Innershield® NR®-232 from Lincoln Electric is designed for high deposition, out-of-position welding for structural fabrication in seismic zones.

Features

• High deposition rates for out-of-position welding
• Penetrating arc
• Fast freezing, easy to remove slag system
• Meets AWS D1.8 seismic lot waiver requirements
• Notes: AWS D1.8 structural steel seismic supplement test data can be found at the Lincoln Electric Certificate Center.
• WS E71T-8, E71T8-A2-CS3-H16
• CWB CSA: E491T8-A3-CS3-H16, E491T-8-H16

• Typical Applications

  • Structural fabrication, including those subject to seismic requirements
  • General plate fabrication
  • Hull plate and stiffener welding on ships and barges
  • Machinery parts, tanks, hoppers, racks and scaffolding

  • Welding Positions

    • All

    • Spec Sheet

      Available Spool Sizes, Wire Diameter & Item Number:

      Diameter (in mm)		13.5 lb (6.1 kg) Coil		25 lb (11.3 kg) Steel Spool		50 lb (22.7 kg) Coil
      0.068 (1.7 mm)		ED012518		ED030643		ED012519
      0.072 (1.8 mm)		ED012522		ED030644		ED012523
      5 64 (2.0 mm)		ED012525		ED030647		ED012526

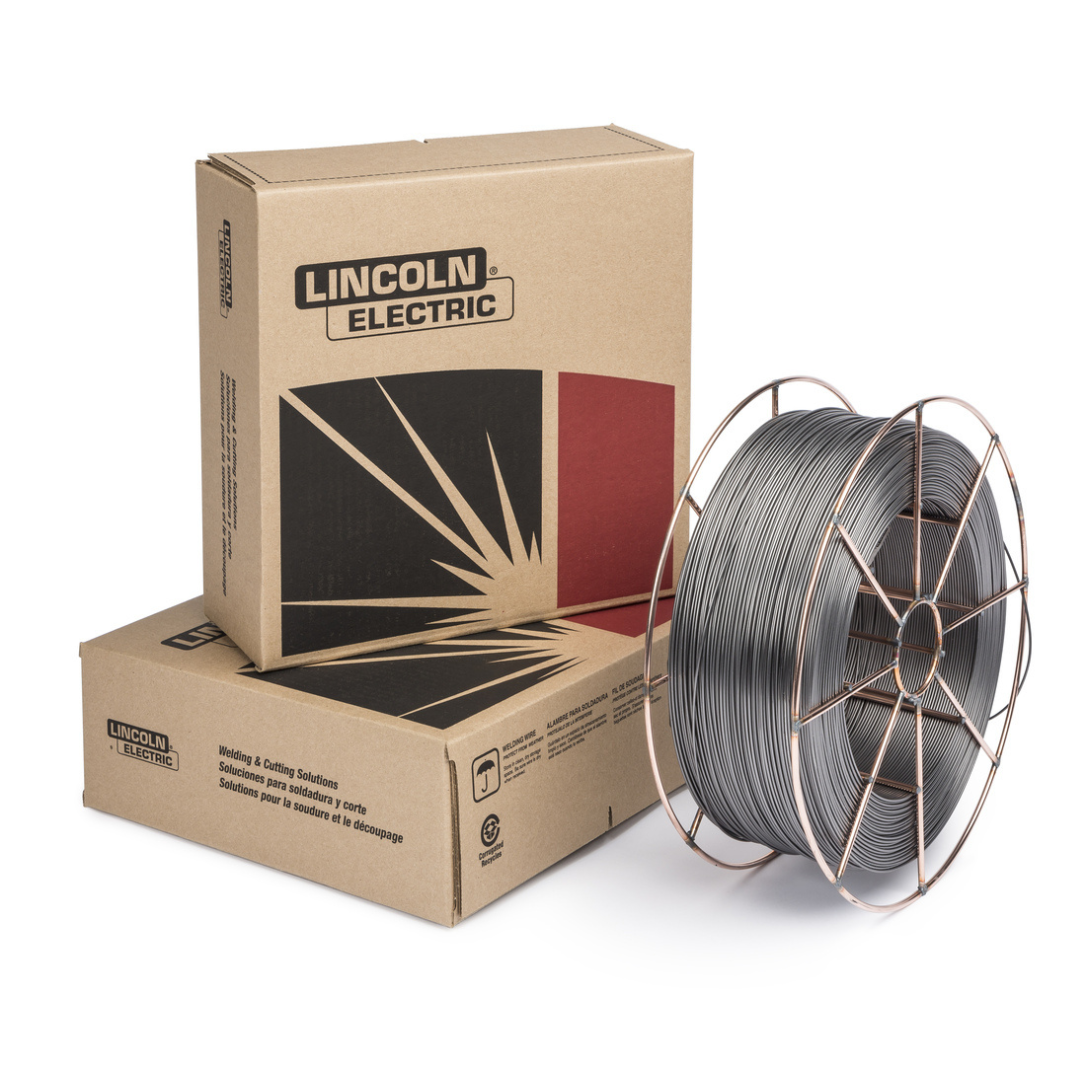

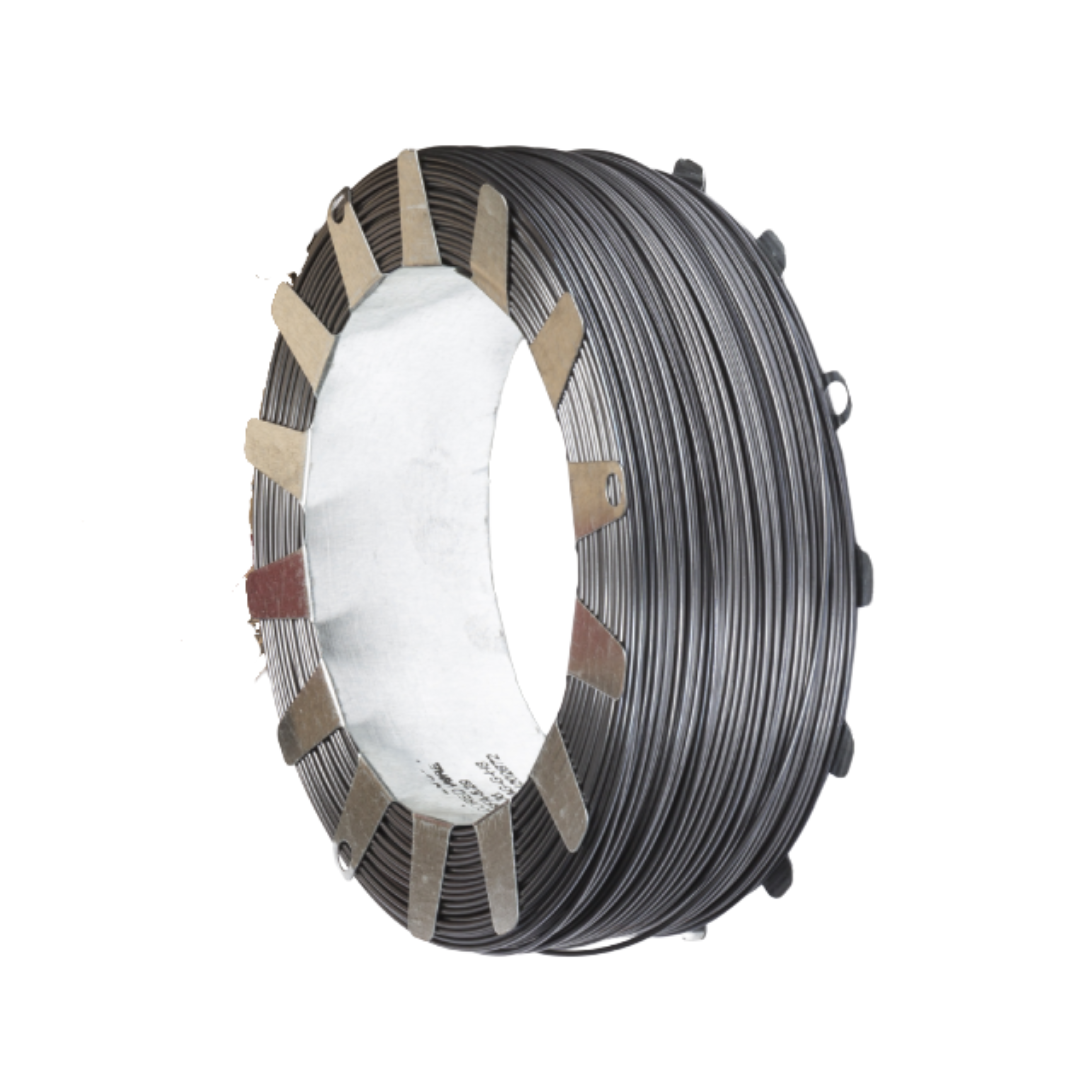

      Spool Size	13.5 lb Coil (8" Spool), 25 lb (12" Spool)
      Wire Diameter	0.068 in (1.7 mm), 0.072 in (1.8 mm), 5/64 in (2.0 mm)
