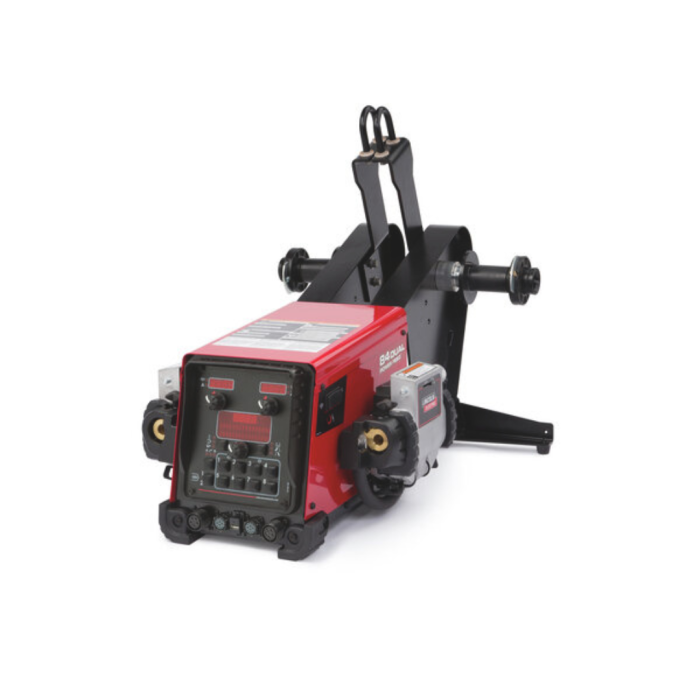

Lincoln Electric Power Feed 84 Dual Bench Wire Feeder

Single Digital Control Semiautomatic Wire Feeder

The Power Feed® 84 semiautomatic industrial wire feeder is built on a modular platform to be used in a variety of applications.

• Simple & Customizable Controls
  • Auto Settings simplify process setup
  • Eight User Memories- Per Feed Head for complete WPS recall
  • • Rugged
      • Improved Isolation & Environmental Protection
      • Robust connection points allow for reliable operation in tough conditions
      • • Modular
          • Modularity allows for customizable configurations
          • • Advanced Interface – includes digital meters for actual and preset weld display and full weld sequence control including run-in, start, weld, burnback and crater parameters.

            • USB Port – included on select models for unlimited memory expansion or for future upgrades.

            • Feed plate – can be located on either right or left side of the wire drive housing for easy integration into any work center.

            • Electrode input stud – mounted on the wire drive frame – protects the feed plate from misuse caused by pulling on the gun cable.

            • New Gun Adapters – deliver improved electrical reliability, less voltage loss and simplified connection.

            • Optional Digital Gas Flow Kit – displays actual gas flow rate while welding.

            • Push-pull capable – drive systems.

            • Features:

              • New Auto-Settings simplify process setup
              • Eight User Memories – Per feed head for complete welding procedure recall
              • Improved isolation & environmental protection
              • Robust connection points allow for reliable operation in tough conditions
              • Modularity ensures the feeder can be configured to fit a variety of application needs

              • Package Includes:

                • User interface
                • Standard #2 – #4 gun adapter
                • 20 tooth pinion gear
                • Heavy duty wire reel stand 8 ft. (2.4 m) control cable (K1543-8) USB

                • Spec Sheet
