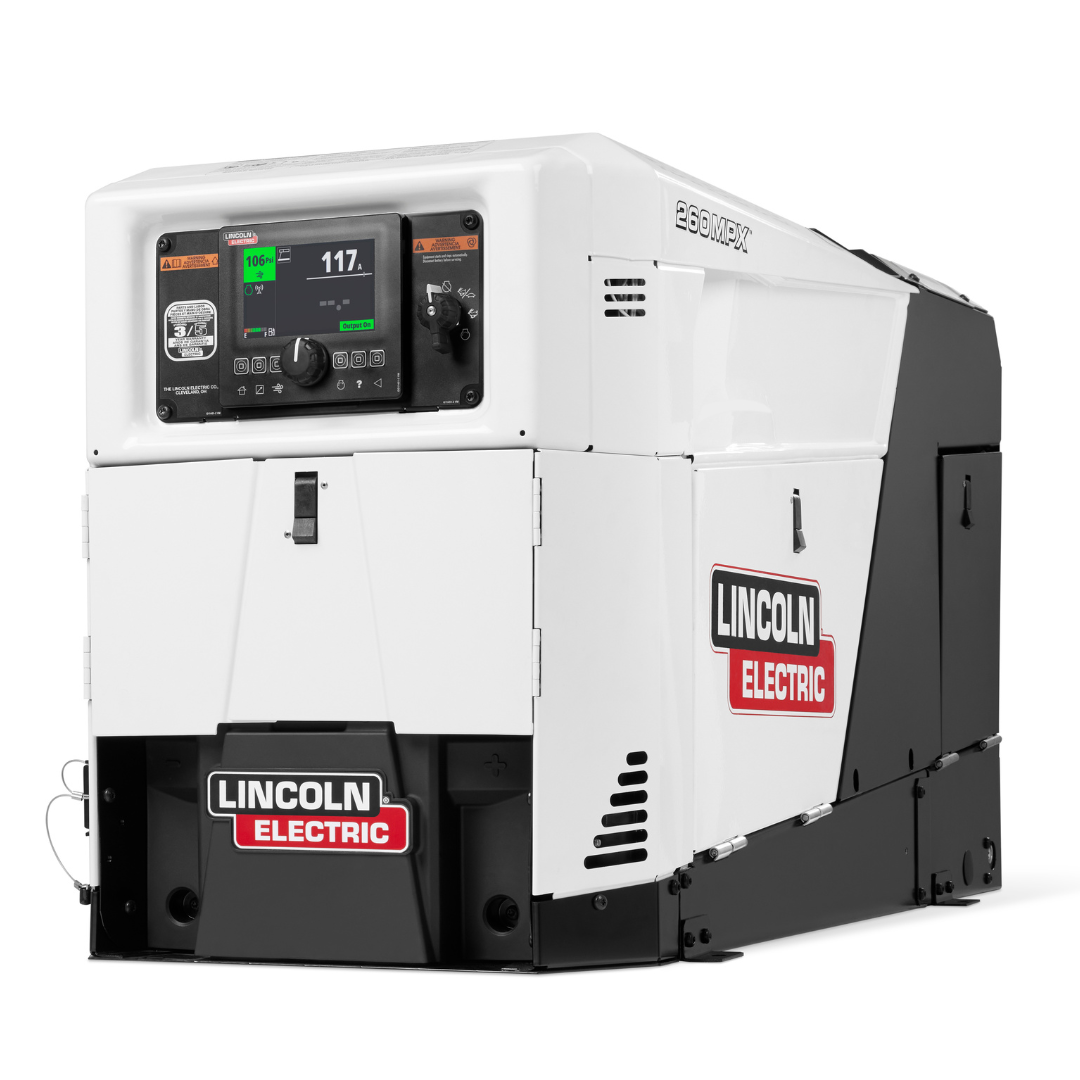

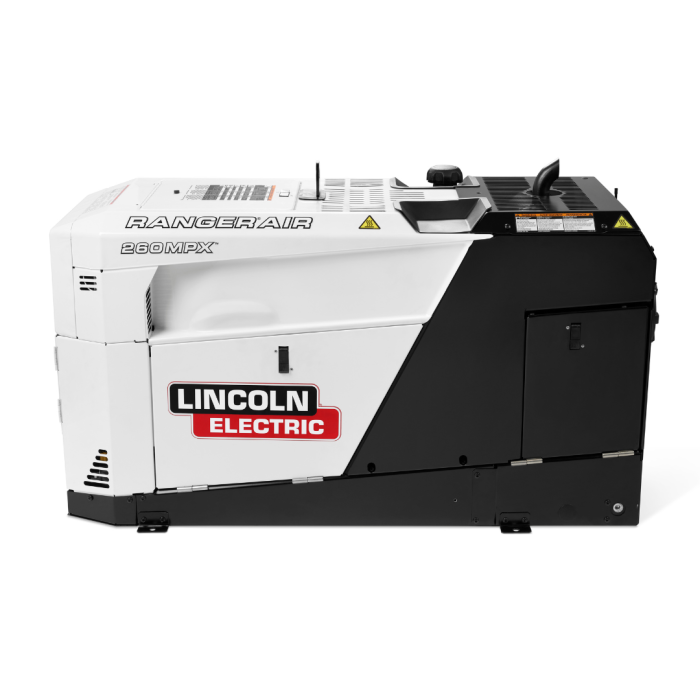

Lincoln Electric RANGER® AIR 260MPX Multi-Function Engine Drive

Versatility With Unparalleled Performance

The Ranger Air 260MPX multi-function engine drive was designed for the operator who faces the unexpected every day. A perfect fit for fleet and service trucks, the Ranger 260 MPX AIR builds on the compact and versatile Ranger MPX platform.

Air Compressor – The Vanair® rotary screw air compressor delivers instant 40CFM @150 PSI, generating up to 30% more air power compared to other machines in its class. Operators can power large tools – up to a 1-inch impact wrench, and inflate
tires faster to complete jobs in less time.

Generator – 9KW of clean continuous AC generator power accommodates a variety of tools and equipment, allows you to power tools while welding and with less than
5% total harmonic distortion (THD) you can operate sensitive electronics, like laptops.

Battery Jump Assist and Battery Charging – Capability to jump and charge 12V and 24V batteries on the jobsite. Get equipment started and keep productivity high with 260A for cold cranking assist.

Multi-Process Welding – Stick, TIG, MIG, Flux-Cored and direct connect spool gun
with a 260A 26V 100% duty cycle so the operator can tackle a variety of applications

Ranger AIR 260MPX Technical Specifications

Product Name Part number		RANGER® AIR 260MPX K5238-1
Duty Cycle:		260 Amps, 26 Volts @ 100%
Welding Output:		260 Amp DC, MulitProcess, Chopper Technology
Generator Output:		11,500W Peak, 9,000W Continuous 60Hz AC Power Single Phase
Full-KVA Receptacle:		39.5A @ 240V, 40A @ 120V ea. Branch Circuit
120V Receptacles:		Four 120V Receptacles, 20A Total
Kohler Engine: OHV Command ECH749 Gasoline		26.5 HP @ 3600 RPM, 45 cu in (725 cc) Electric Start, 12V Battery, 410 CCA, Rotary Start Switch Fuel: 11 Gals (41.6 liters) Oil: 0.5 Qts (1.8 liters)
Weight		565 lb. (256 kg)
