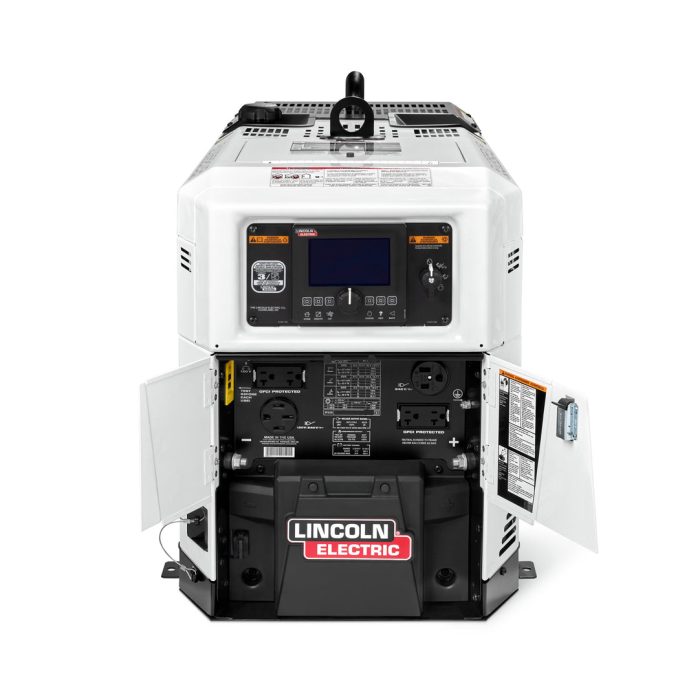

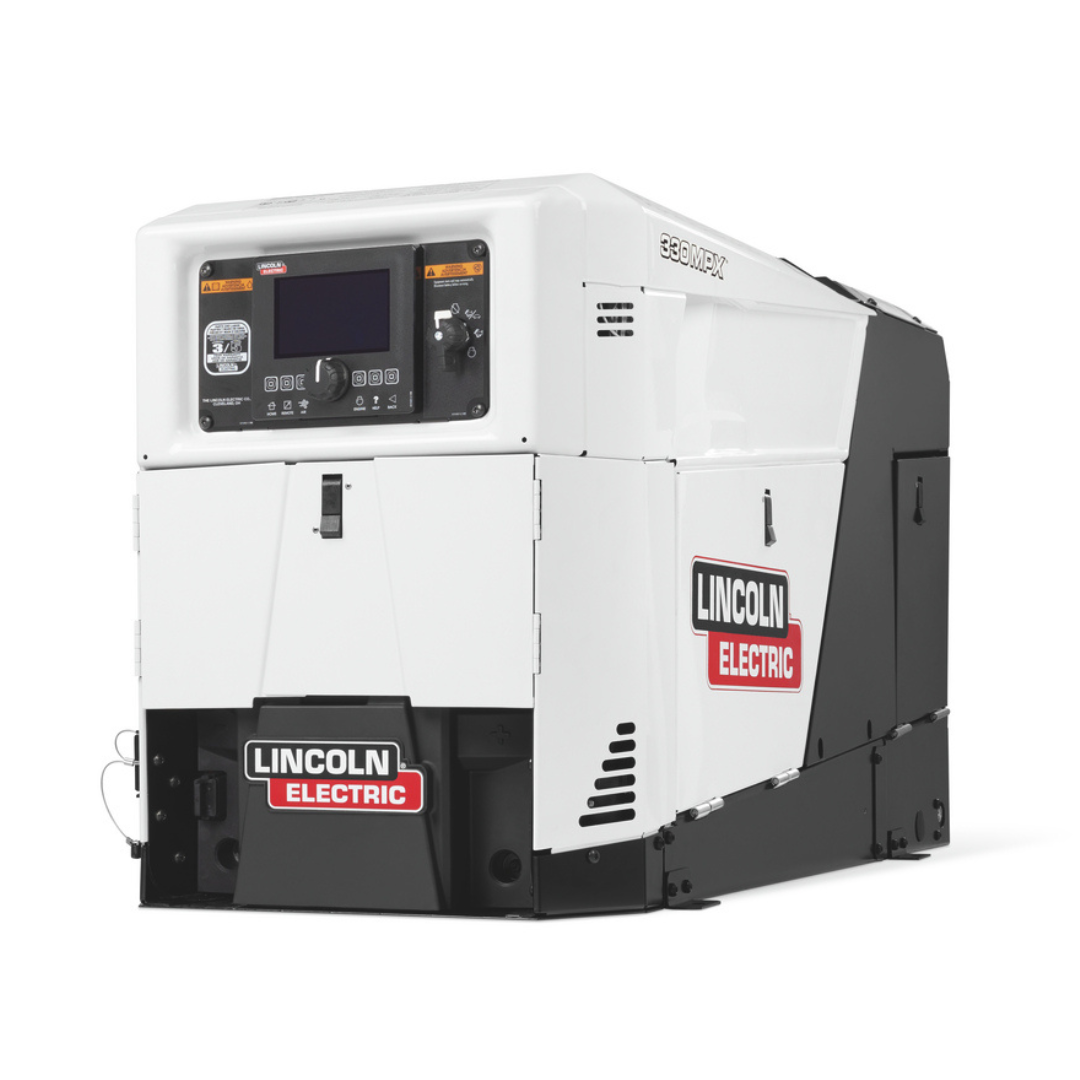

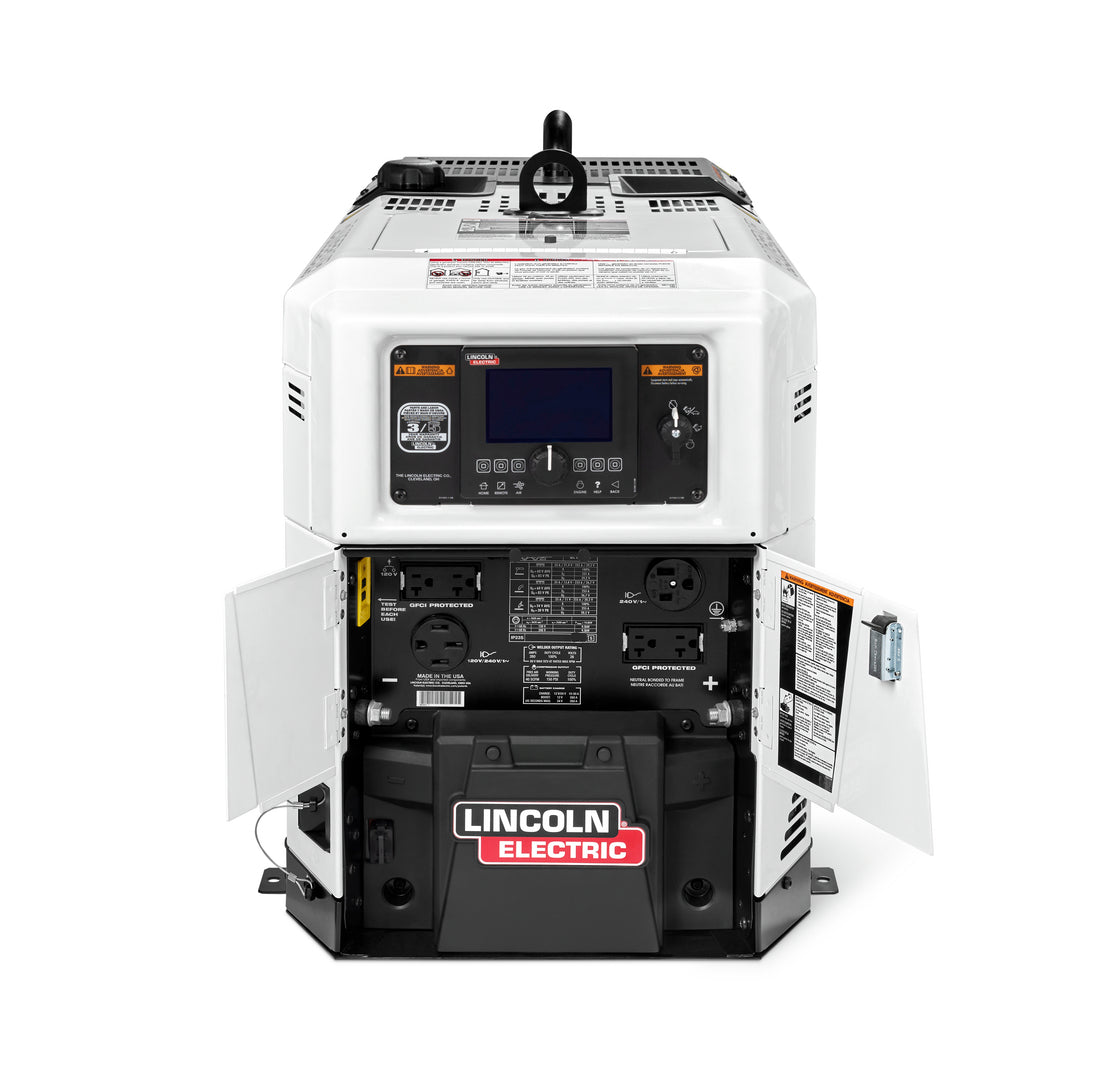

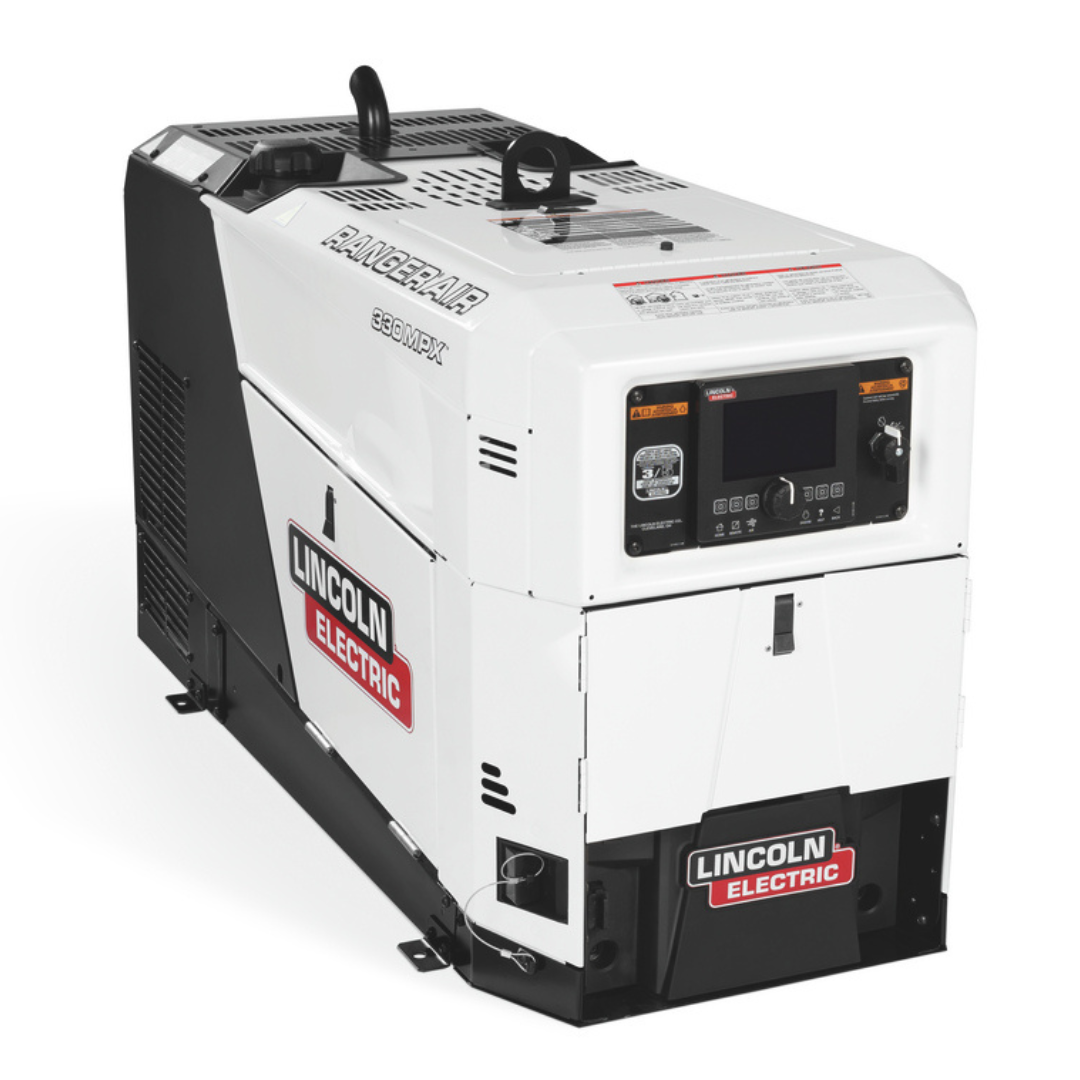

Lincoln Electric RANGER® AIR 330 MPX Multi-Function Engine Drive

Versatility With Unparalleled Performance

The Ranger Air 330MPX multi-function engine drive was designed for the operator who faces the unexpected every day.

Air Compressor

The Vanair® rotary screw air compressor delivers instant 40CFM @150 PSI,
generating up to 30% more air power compared to other machines in its class.
Operators can power large tools – up to a 1-inch impact wrench, and inflate
tires faster to complete jobs in less time.

Generator

10KW of clean continuous AC generator power accommodates a variety of
tools and equipment, allows you to power tools while welding and with less
than 5% total harmonic distortion (THD) you can operate sensitive electronics,
like laptops.

Battery Jump Assist and Battery Charge

Capability to jump and charge 12V and 24V batteries on the jobsite. Get
equipment started and keep productivity high with 330A for cold cranking assist.

Multi-Process Welding

Stick, TIG, MIG, Flux-Cored and direct connect spool gun
with a 330A 28V 100% duty cycle so the operator can tackle a variety
of applications.

Advanced Weld Modes

Gouge, pipe, pulsed TIG and pulsed spool gun modes give the operator more
control and flexibility when taking on welding jobs

Ranger AIR 330MPX Technical Specifications




Product Name Part Number		Ranger Air 330MPX K5239-1
Battery Jump Assist		330A
Battery Charge		25A or 50A
IEC Rating		CC-Stick: 292A 31.7V 100% Touch-Start TIG: 325A 23V 100% CV-Wire: 312A 29.6V 100%
Non-IEC Rating		330A 28V 100%
Output Range		CC-Stick: 35A – 330A Touch-Start TIG: 25A – 330A CV-Wire: 35A – 330A
Generator AC Power		11,500 Watts Peak 10,000 Watts Continuous
Voltage Output		60 Hz Single Phase 39.5 @ 240V 40A @ 120V each branch circuit
Receptacles		Four 120V Receptacles (20A Total) One 120 240 Volt AC Full KVA Receptacle One240 Volt AC Receptacle
Dimensions		26 x 20 x 48 (660 mm x 508 mm x 914 mm) To Top of Exhaust: 29 (737 mm)
Weight		565 lbs (256 kg)
Engine Model		Kohler OHV Command ECH749, 2 Cylinder, 4 Cycle, Air-Cooled, Gasoline Engine
Horsepower & Displacement		26.5 HP @ 3600 RPM 45 cu in (725 cc)
Fuel Capacity		11 Gallons (41.6 Liters)
Oil Capacity		0.5 Gallons (1.8 Liters)
Operating Speeds		Full Load: 3,600 RPM High Idle: 3,600 RPM Low Idle: 2,500 RPM
Fuel Consumption		Full Load: 1.9 Gals Hr (7.0 L Hr) High Idle: 0.6 Gals Hr (2.4 L Hr) Low Idle: 0.5 Gals Hr (1.8 L Hr)
Compressor Model		Vanair Single Stage, Oil Injected Rotary Screw
Compressor Delivery		40 CFM @ 150 PSI
Maximum System Pressure		150 PSI
Compressor Protection		Safety Relief Valve @ 225 PSI High Temperature Automatic Shutdown at 250°F
Compressor Capacity		0.75 Gallons (2.84 Liters)
