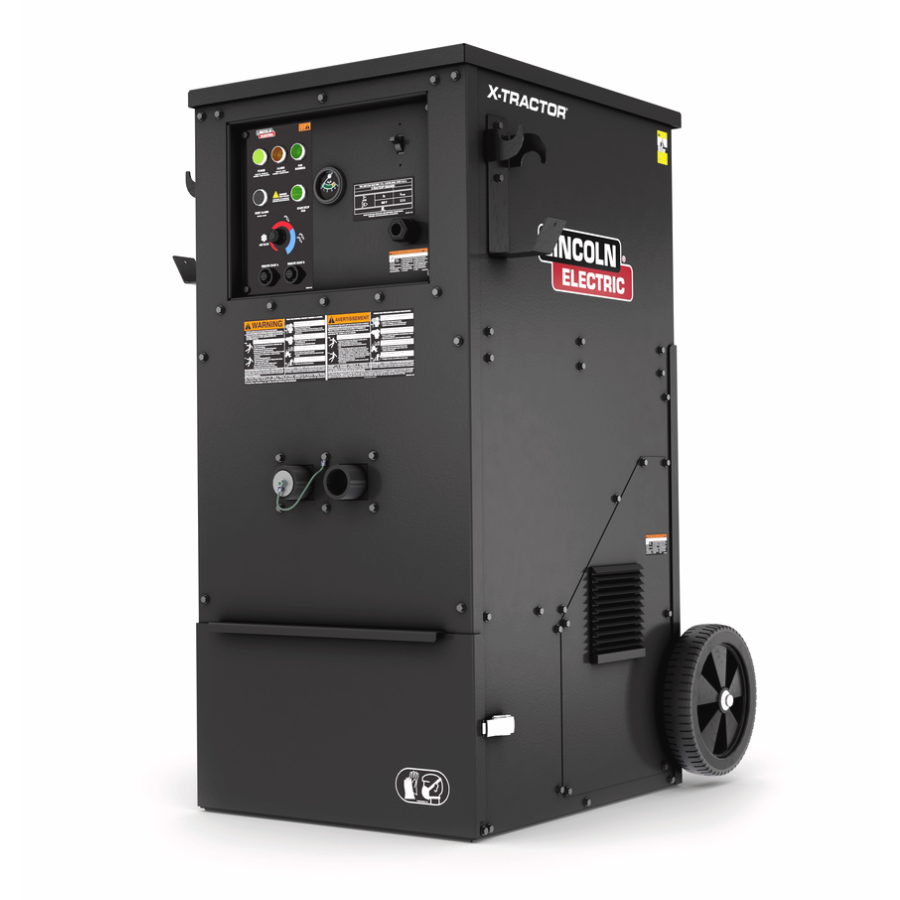

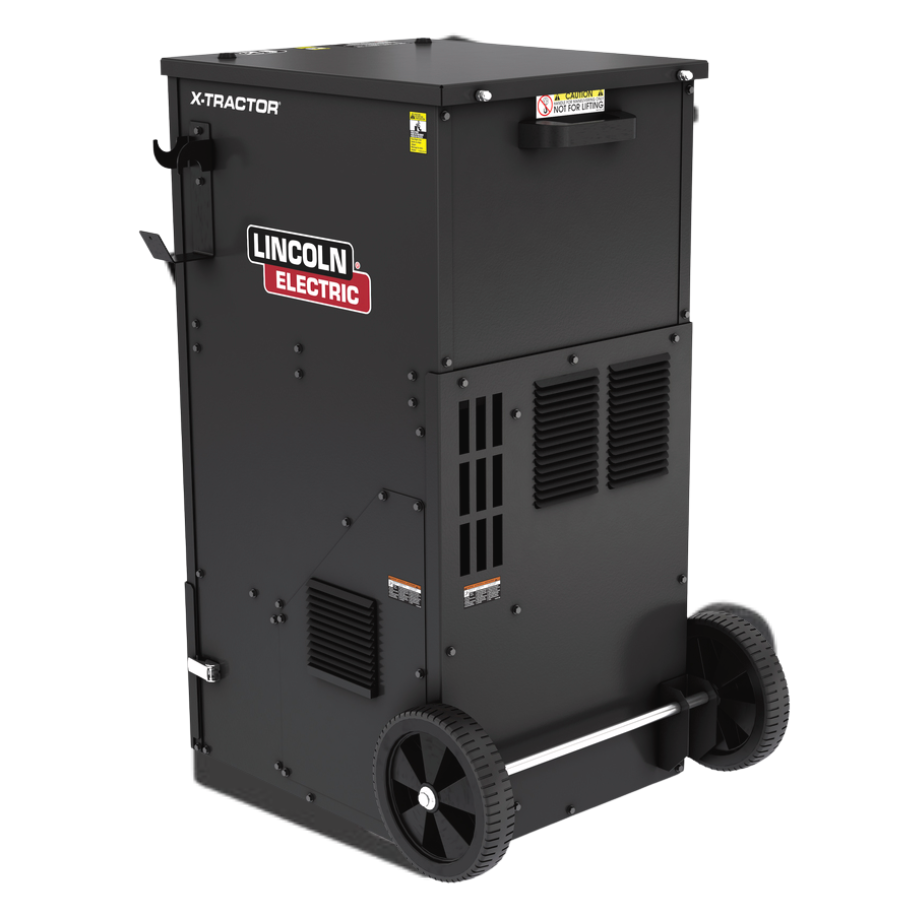

Lincoln Electric X-Tractor® 2 – 2 Torch Fume Extractor

2-Torch Solution for Fume Guns. 3-Phase Power Required

The Lincoln Electric X-Tractor® 2 Fume Gun is a high vacuum extraction system designed for the removal and filtration of welding fume. This unit is a great choice for fume removal in light duty welding applications typically used in heavy fabrication, ship building and maintenance shops. The compact size of the X-tractor 2 Fume Gun makes it an asset for the mobile welder and in locations where ambient or low vacuum source capture is not available.

• Automatic Self Cleaning
• VFD Controlled – 4 HP
• SCFM Control at the unit 180 max. SCFM
• 150 SCFM when connected to two fume guns.
• Infinitely variable fan speed control knob

• Product Specifications

  Product Name Part Number		X-Tractor® 2, 230V 3PH  K5271-2 X-Tractor® 2, 575V 3PH K5271-3 X-Tractor® 2, 460V, 3PH  K5271-1
  Input Power Consumption (Amps)		K5271-2 (208-230V) – 10.5A K5271-3 (575V) – 3.8A K5271-1 (460V) – 5.2A
  Dimensions (HxWxD)		44.8 x 26.1 x 32.3 inch (1138 x 663 x 820 mm)
  Net Weight		335 lb.

  Applications

  • Fume Guns
  • On-Torch Robotic Systems
  • Fume Extraction Nozzles

  • What s Included

    • MERV 16 (HE), Nano Filter
    • Automatic Filter Cleaning System
    • (2) torch hose holder brackets
    • Removable dust bin
    • 20 ft (6M) power cord

    • Product Brochure

      Non Stock Item – Allow 2 week lead time

  Select Input Voltage Power	575V 3-Phase – K5271-3, 208-230V 3-Phase – K5271-2, 460V 3-Phase – K5271-1
