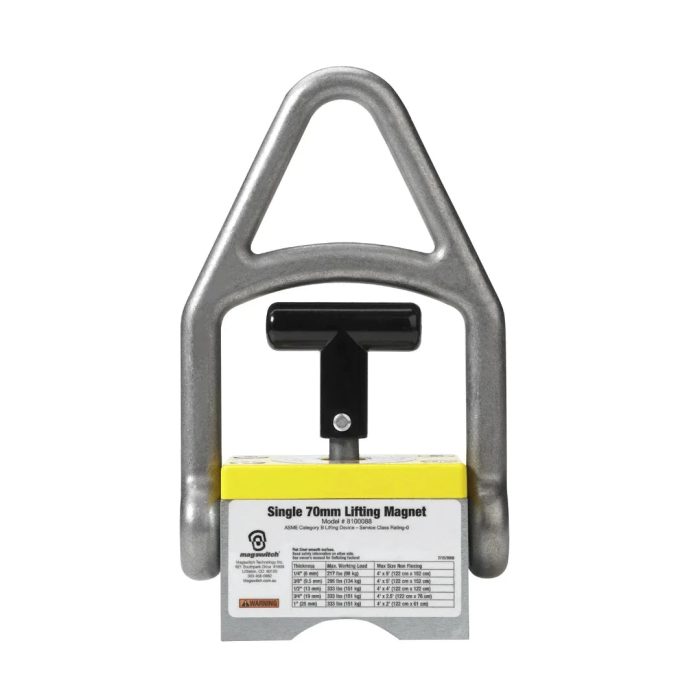

Magswitch MLAY600 Lifting Magnet – 81000898



Built for heavy-duty lifting, our magnet technology is powerful without the need for a power source. Safely lock in the on and off position with a 3:1 Safe Working Load of 195 pounds. The pivoting lift hook offers the stability to lift from horizontal to vertical.

Features

• Magnetic field turns completely on and off mechanically.
• Does not use an electrical power source.
• Magnet stays clean.
• Holds flat and round surfaces of steel.
• Safety locking handle.
• Full swivel hook allows for lifting from the top or side.
• Strong grip on thin material and uneven surfaces.
• Part No. 8100089

• Specifications:

  • Max Breakaway: 584 lbs 264.9 kg on 2 steel
  • 3:1 Safe Working Load: 195 lbs 88.4 kgs
  • 2:1 Shear Working Load: 70 lbs 31.7 kgs
  • Full Saturation Thickness: 0.5 in 12.7 mm
  • Max Safe Shear: 70 lbs 31.8 kg
  • Minimum Thickness for De-Stack: 0.5 in 12.7 mm
  • Product Weight: 4.4 lbs 2 kg
  • Dimensions: 4.2 x 2 x 7.2 in 106.6 x 50.8 x 182.8 mm
  • Magnetic Pole Footprint: 75 mm x 51.5 mm
