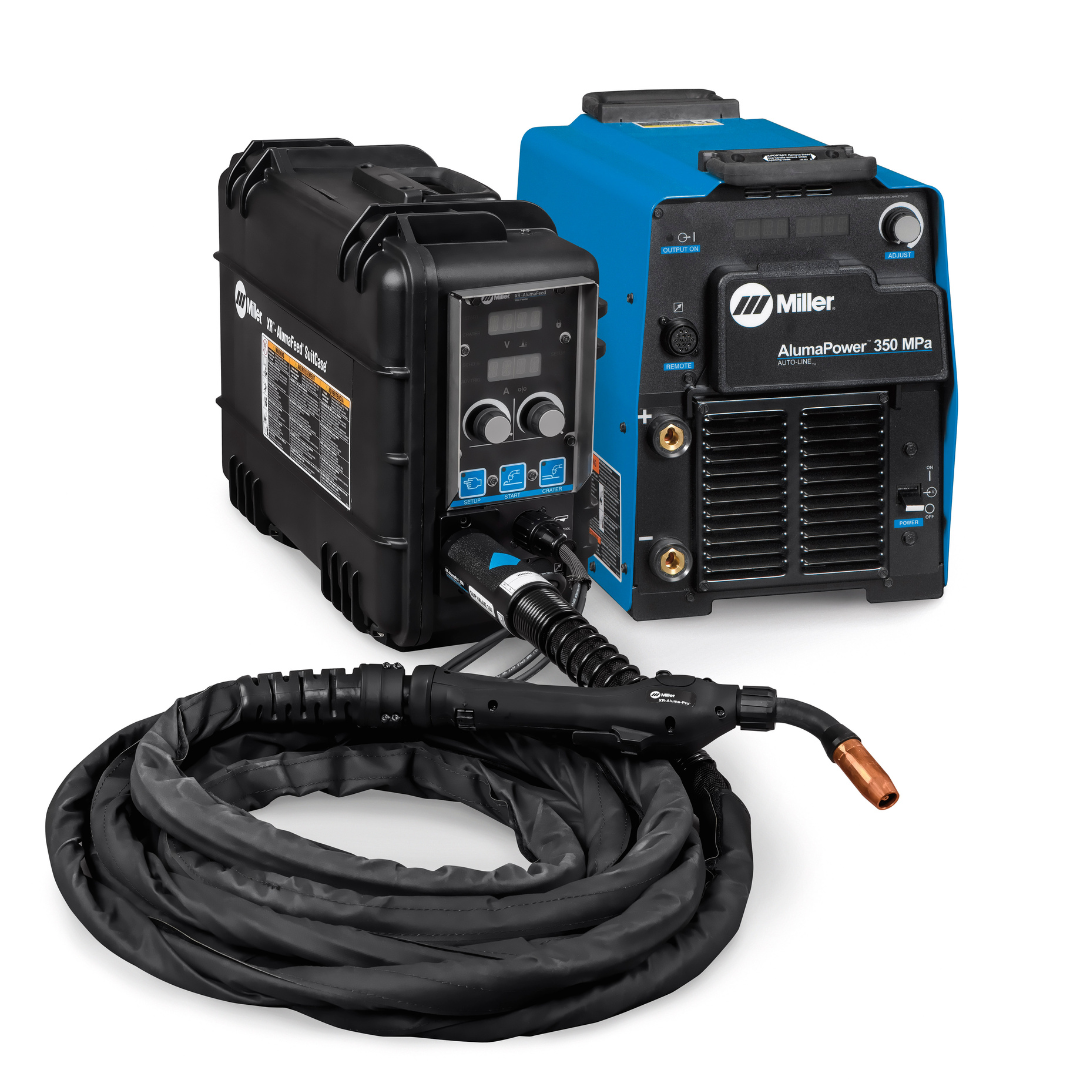

Miller AlumaFeed 350 MPa Stationary Package with 25 Air-Cooled XR-AlumaPro



The AlumaFeed 350 MPa system is designed for superior aluminum welding performance, ensuring high-quality welds with consistent feeding. Featuring a balanced and ergonomic push-pull gun, this system provides excellent joint access, precise control, and reduced fatigue for all-day welding. The rugged and portable XR-AlumaFeed Suitcase® wire feeder enhances mobility, making it easier to take the system where welding is needed. Advanced technologies like Profile Pulse™, Synergic Pulsed MIG, and Fan-On-Demand™ improve efficiency, weld quality, and energy savings.

Package Includes:

• AlumaPower™ 350 MPa power source
• XR-AlumaFeed® SuitCase® wire feeder
• XR-Aluma-Pro™ 25ft. push-pull gun (gooseneck-style)
• Fastip contact tips (3 each for .035 Al and 3 64 Al)
• Gun and feeder drive rolls for .035–3 64 wires
• Industrial-quality gun cable with durable covering and strain relief

• Specifications:

  Product Name Part Number		AlumaPower 350 MPa – 951834
  Welding Processes		MIG (GMAW), Flux Core (FCAW)
  Input Power		Three-phase, Single-phase
  Amp Volt Ranges		CC mode: 5–425 A, CV mode: 10–38 V
  Rated Output		350 A at 34 VDC, 60% duty cycle
  Input Current at Rated Load Output, 60 Hz
  208V		40.4 A
  230V		36.1 A
  400V		20.6 A
  460V		17.8 A
  575V		14.1 A
  Max. Open-Circuit Voltage		75 VDC
  Power Consumption		60.8 KVA, 14.2 KW
  Dimensions (H × W × D)		17 in. × 12.5 in. × 24 in. (432 × 318 × 610 mm)
  Weight		80 lb. (36.3 kg)
  Certification		CSA Certified to Canadian & U.S. Standards



  Full Product Data Sheet
