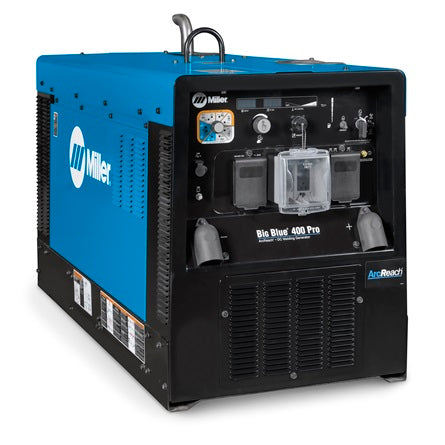

Miller Big Blue® 400 Pro (Kubota) ArcReach – 907732001

The professional welder’s choice— designed with the professional in mind, the Big Blue 400 Pro is the best for ease of use, reliability and fuel economy.

Features

• Heavy-Duty Low-Speed Kubota V1505 Industrial Diesel Engine – Used in industrial applications around the world, the V1505 is designed to run 10,000 hours before major overhaul. Backed by worldwide support and service.

• Quiet Operation – Improves worksite safety and communication.

• Digital Meters with SunVision™ – Enables welding parameters to be viewed with greater clarity at virtually any angle. Meters can be seen clearly even in direct sunlight.

• Industrial USB Port – Quickly upload the latest software and download machine log files to retrieve in-depth information such as diagnostics and machine statistics.

• Auto Remote Sense™ (ARS) – Detects if a remote control is plugged into the 14-pin receptacle and eliminates the confusion of a remote panel switch.

• Simple-to-Set Controls – Requires no elaborate procedure – just select process and weld!

• HD Powder Coat – All painted sheet metal is pretreated with a zinc-rich primer to provide extra protection against rust & corrosion (comparable to stainless steel).

• Low OCV Stick (VRD) – When activated, reduces the open-circuit voltage to 15 volts when the power source is not in use, increasing operator safety without compromising arc starts.

• Title		Big Blue® 400 Pro (Kubota) ArcReach
  Industries Interests		Infrastructure Fabrication Pipe Fabrication Construction Maintenance and Repair – Field Operations
  Engine Brand		Kohler
  Engine Idle Speed		1500 RPM
  Engine Weld Speed		1800 RPM
  Fuel Tank Size		11.5 gal.
  Fuel Type		Diesel
  Amperage		20 A – 400 A
  Horsepower		20.2 hp
  Rated Output		400 A at 24 V, 100% duty cycle
  Single Phase Generator Continuous Power		10000 W
  Single Phase Generator Peak Power		12000 W
  Sound Rating		Idle: 66 dB (91 Lwa) Weld: 71.6 dB (96 Lwa)
  Rated Carbon Diameter		3 16 in (4.8 mm)
  Current Type		DC
  Portability		Lift Eye (Standard) Running Gear Cart (Optional) Trailer (Optional)
  Weld Output		CC CV
  Dimensions		H: 32 in. (813 mm) W: 26.25 in. (667 mm) D: 56 in. (1,422 mm)
  Net Weight		950 lbs
  Warranty		3 Years

  Non Stock Item, Not Eligible for free shipping. – Please contact support@canadaweldingsupply for accurate lead time and freight cost

  Product Fact Sheet
