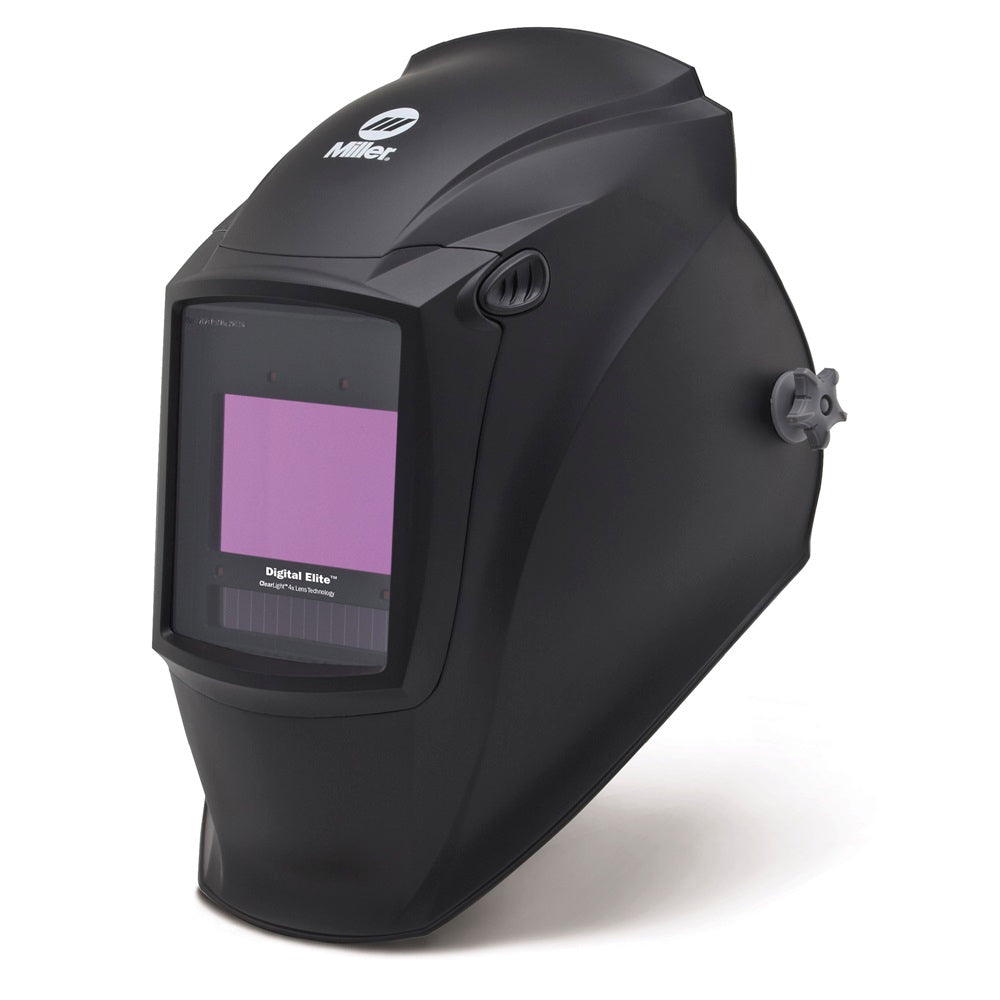

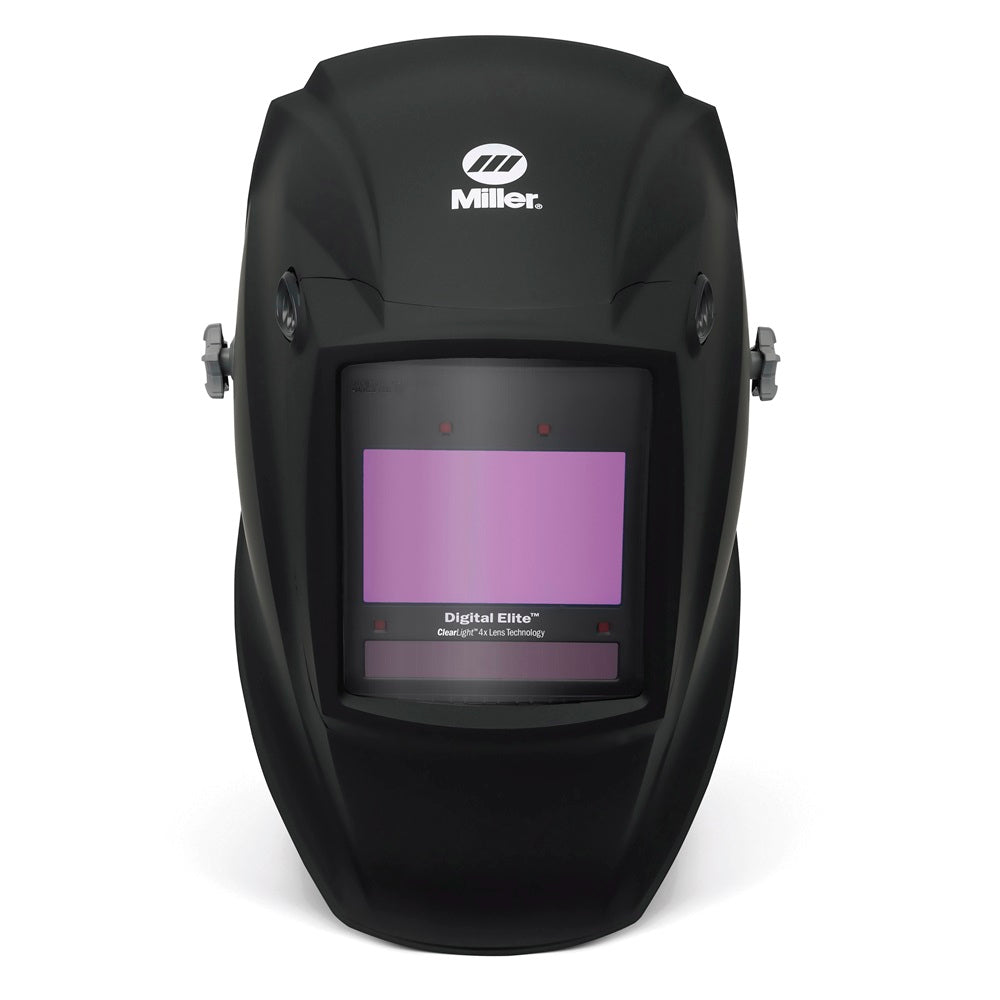

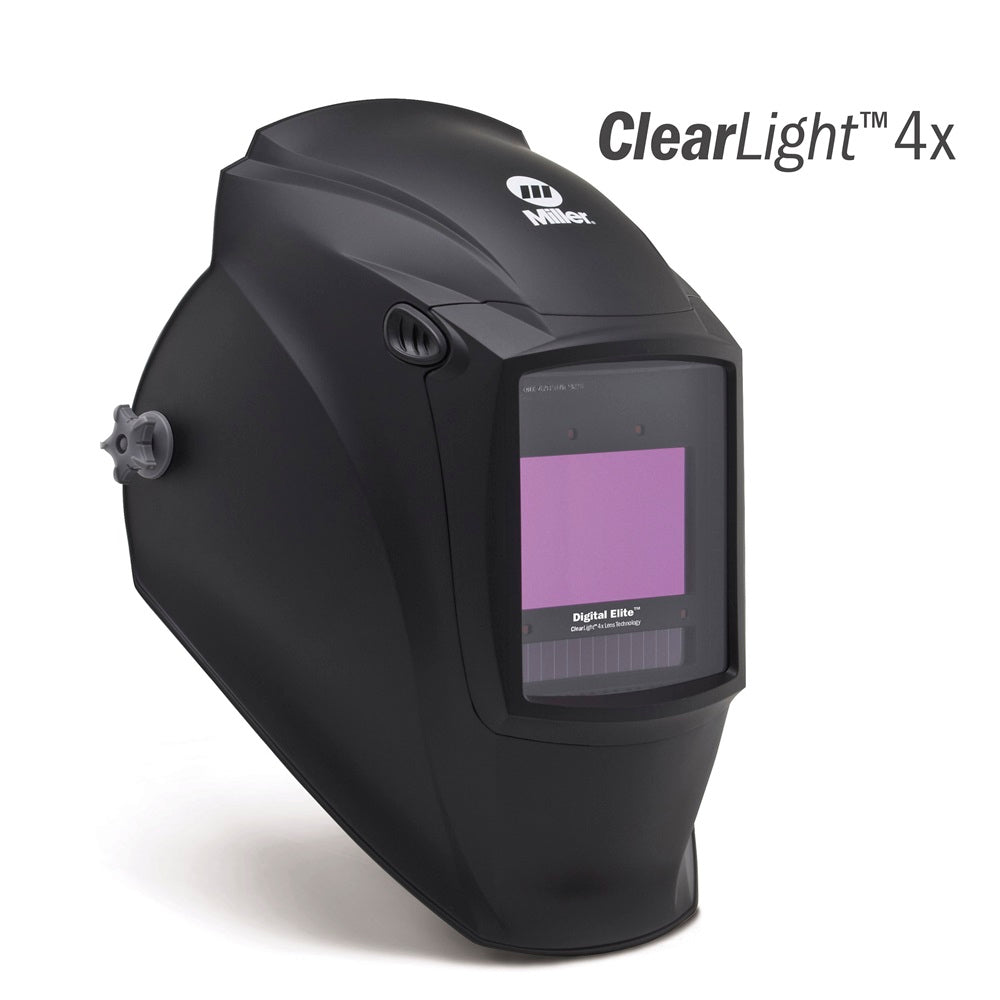

Miller Digital Elite, Black Welding Helmet

Clearlight 4x



This leading welding helmet provides high-performance versatility. Features ClearLight™ 4x Lens Technology and a large viewing area.

Part No. 296765

Features:

• ClearLight™ 4x Lens Technology: Offers up to four times better clarity compared to standard welding helmets, with 1 1 1 2 optical clarity.

• InfoTrack™ 2.0: Tracks and displays arc time and arc count to monitor welding performance.

• AutoSense™ button: Automatically adjusts helmet sensitivity to suit the welding environment, reducing manual setup.

• Four arc sensors and operating modes: Includes Weld, Cut, Grind, and X-Mode for versatile welding tasks.

• X-Mode™: Electromagnetically senses the weld to reduce sunlight interference and detect the arc even if sensors are blocked.

• Digital controls: Allows precise adjustment of lens settings for shade, delay, and sensitivity.

• Memory function: Stores two customized presets for quick switching between different settings.

• Half-shade settings: Provides finer control over lens adjustments for improved precision.

• Legacy headgear: Features a comfort cushion designed for enhanced stability and comfort during long hours of wear.

• Helmet lighting accessory kit: Optional kit includes two side-mounted lights for better visibility in low-light conditions.

• Product Name Part Number		Digital Elite™, Clearlight 4x, Black 296765
  Light State		2.5
  Sensors		4
  Optical Clarity (EN 379)		1 1 1 2
  TIG Rating		5 amps and below
  Switching Speed		1 25,000 second
  Weight		17.5 oz. (495 g)
  Battery		CR2450 Lithium
  Certifications		ANSI Z87.1+, CSA
  Viewing Area		9.2 sq. in. (59.48 sq. cm)
  Operating Modes and Shades		Weld (8 – 13), Cut (5 – 8), Grind (2.5), X-Mode™ (8 – 13)
  Warranty		Four years for the auto-darkening lens

  What s Included

  • Helmet bag
  • 2 inside cover lenses
  • 5 outside cover lenses

  • Digital Elite Series Data Sheet | Digital Elite Series Manual | Replacement Parts
