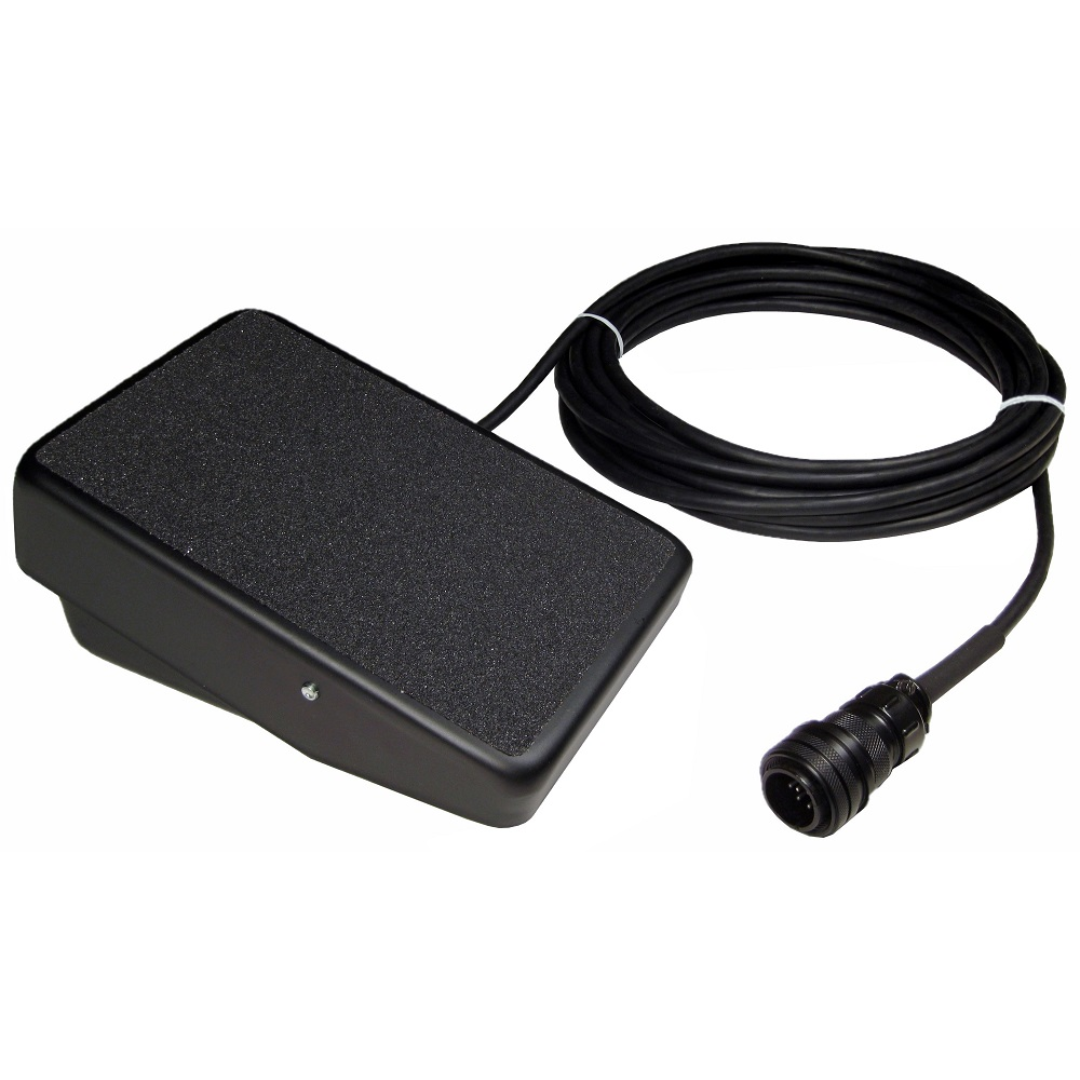

SSC TIG Foot Pedal for AHP, PrimeWeld



Upgrade your TIG foot control pedal for the AHP TIG welders with a 7-pin plug and 25-ft cable. Fits 2015 and beyond AHP AlphaTIG 200X and AHP AlphaTIG 201XD and Primeweld 225X TIG machines that use the 7-pin plug and 10,000-ohm potentiometer.

Features heavy-duty steel housing, tough made-in-USA cable with added flexibility, low profile with wide base for stability and comfort, and continuous potentiometer resolution for precision weld control. Simply press the pedal to activate the gas contactor and increase current; release the pedal to turn off the weld output and activate the afterflow cycle.

Certified to CSA and UL standards. Designed and manufactured in the USA.

Features:

• 16-gauge steel case
• oversized top traction area
• non-slip 3M® traction pads
• comfortable at-rest and operating foot positions
• Includes a 25-foot cable and 7-pin plug which mate to the power source.
• This foot control works with the AHP AlphaTIG 200X, AHP AlphaTIG 201XD and Primeweld 225X
• Certified to CSA and UL standards.
• Designed and manufactured in the USA.
• Part Number: C910-0725

• Specifications:

  Model:		C910-0725
  Cable Length:		25 ft.
  Connection:		7-Pin
  Dimensions, L x W x H, in. (cm.):		8.8 x 5.5 x 4 (22.4 x 14.0 x 10.2)
  Weight, pounds (kg.):		6.1 (2.8)
  Finish:		powder paint, matte black

  Product Data Sheet and Wiring Diagram
