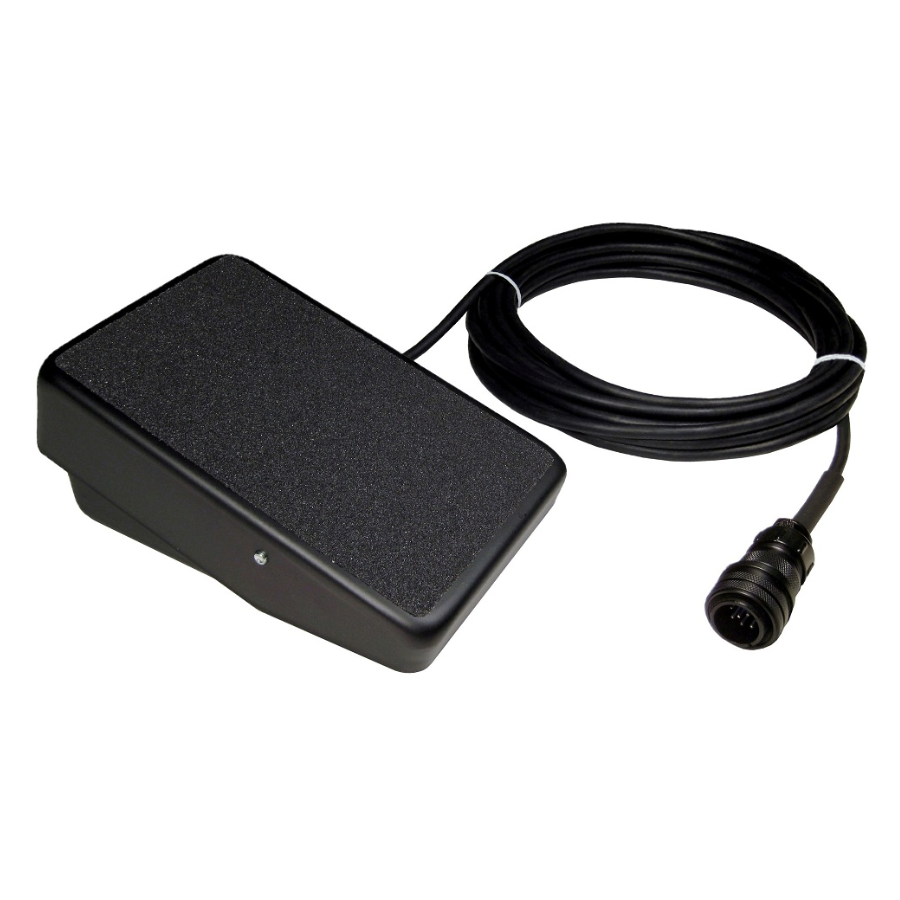

SSC ESAB® Style (14 Pin) Pedal – Model C860-1430



The C800 foot controls are dependable workhorses with high-performance characteristics. The C860-1430 is designed for ESAB machines using the 14-Pin connection

Designed for the pro, these rugged and dependable controls provide a tremendous value. The patented design improves low-current welding while providing precision arc control.

The design features a durable 16-gauge steel case, oversized top traction area, non-slip 3M® traction pads, comfortable at-rest and operating foot positions, heavy-duty cable, and precision components. Simply press the pedal to activate the gas contactor and increase current; release the pedal to turn off the weld output and activate the postflow cycle. Includes a 30-foot cable and 14-pin plug.

Optional Heel Rest Attachment Available. Click Here.

• Patented design is tested to one million lifecycles.
• Designed and manufactured under a quality system certified to ISO 9001 requirements.
• Replaces ESAB® FC-5B (p n 33646) and FC-5C (p n 0558004234)
• Made in USA
• Part Number: C860-1430

• Model:		C860-1430
  Cable Length:		30 ft. (9.1 m)
  Connection:		14-Pin Male Amphenol
  Dimensions, L x W x H, in. (cm.):		10 x 10 x 4 (25.4cm x 25.4cm x 10.2cm)
  Weight, pounds (kg.):		5.5 lb (2.5 kg)
  Finish:		Black, powder paint

  Model C860-1430 Direct Connects to:

  • ESAB Miniarc 90i and 140i
  • Heliarc 252, Heliarc 352, Heliarc 582cc, Heliarc 453cc-553cc
  • Multimaster 260
  • Heliarc 160i
  • Digipulse
  • Aristo 350 mpi

  • Product Data Sheet
