SSC Touch 4 TIG Hand Control – ESAB Rebel 8-Pin – T850-0825X



The Only TIG Hand Control That Works Like a Foot Pedal

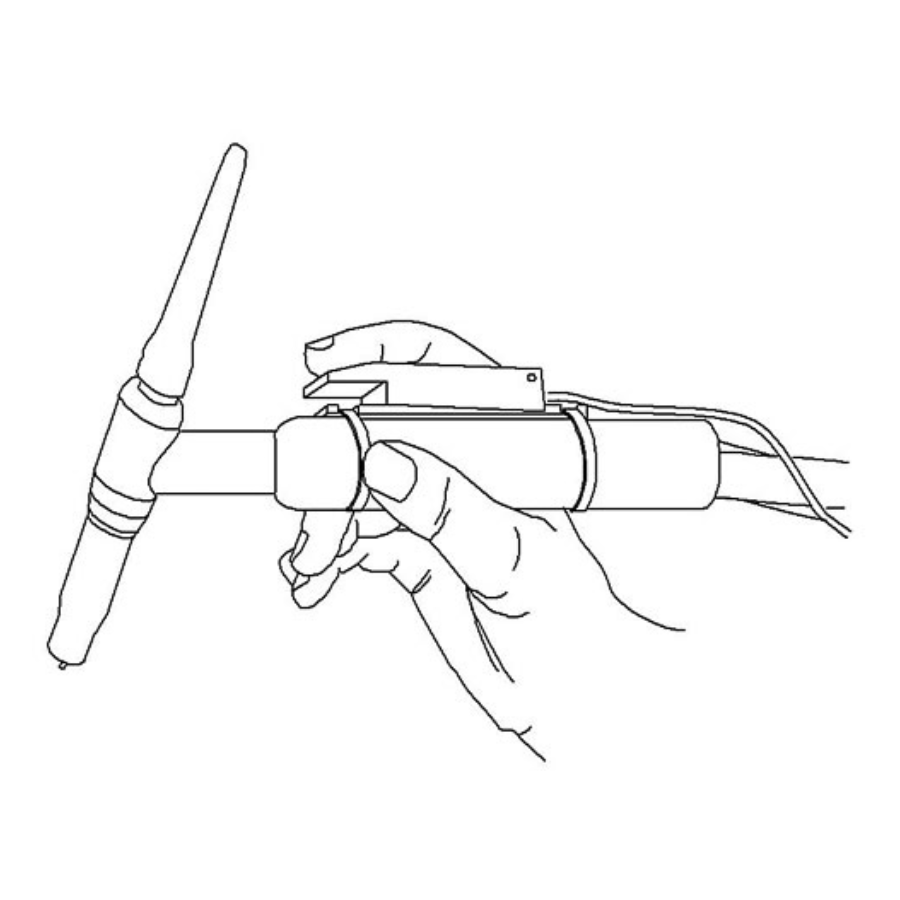

The Touch 4 fingertip control is a new approach to TIG welding amperage control. The idea is simple and innovative, and the result is a steady hand and simple control at your fingertips.

Instead of a knob that you have to turn or a slider that you have to move while trying to hold your TIG torch steady, the Touch 4 relies on pressure applied by your finger.

The Touch 4 works in steps: you apply pressure to turn on the contactor, giving you your low-amps setting, and then you increase pressure through 4 steps: 25%, 50%, 75%, and 100% of the setting on your panel. Set the amps on your panel to about 33% more than the suggested current for the thickness and metal type, and then you simply dither to create the puddle and weld that you want.

The Touch 4 works best for applications where you are normally at the full amperage set on your welder but occasionally need to back off the heat.

Patented, designed, and made in the USA.

• Replaces ESAB Part Number W4014450
• Not for use with other ESAB or Tweco Machines – Rogue and Rebel only
• Made in USA
• Part Number: T850-0825X

• Model:		T850-0825X

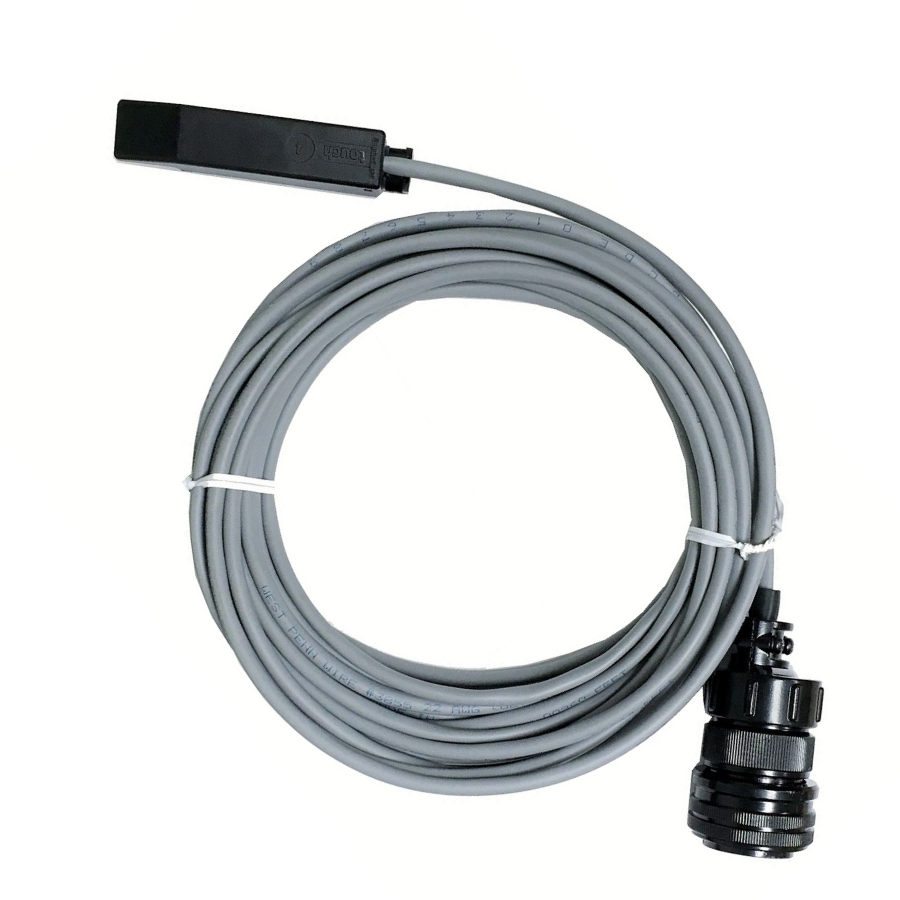

  Cable Length:		25 ft. (7.62 m)
  Connection:		ESAB 8-Pin for Rogue and Rebel



  Compatible With the Following

  • ESAB Rebel EMP 205ic AC DC
  • ESAB Rebel EMP 215ic
  • ESAB Rebel EMP 235ic
  • ESAB Rebel EMP 285ic
  • ESAB MiniArc Rogue 130i
  • ESAB MiniArc Rogue 180i
  • ESAB MiniArc Rogue ET200iP PRO
  • ESAB EMP 210
  • ESAB Renegade Volt

  • Product Data Sheet and More Information
